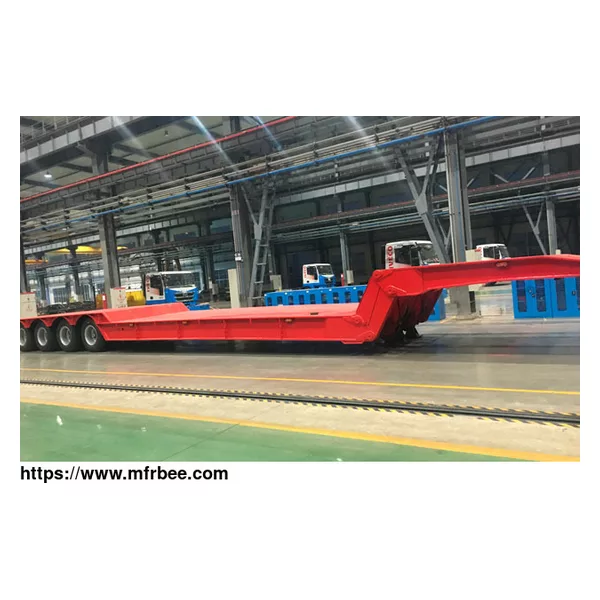

DETACHABLE GOOSENECK TRAILER

FOB Price: USD $100,000.00 / Piece
Place Of Origin: shanghai

Minimum Order: 1

Packaging: N/A

Delivery: 30 Days

Detached gooseneck trailer, also called removable gooseneck trailer refers to a heavy-duty semi low bed trailer with mechanical or automatic disassembly of the gooseneck of the trailer and the loading platform. The main purpose of the gooseneck detach trailer includes the ability to climb the earth-moving machine from the front end of the trailer to the loading platform of the trailer.

WHY CHOOSE A DETACHABLE NECK GOOSENECK TRAILER?

A detachable gooseneck trailer is used for transporting heavy loads and machinery. When using an ordinary semi-low loader trailer instead of detachable gooseneck lowboy trailers, heavy goods are loaded from the mechanical ramp at the rear. However, when a detached gooseneck trailer is used, heavy machines can be loaded from the front.

Given the above removable gooseneck characteristics, the removable gooseneck detach trailer can effectively provide the convenience of loading machines from the front.

REMOVABLE GOOSENECK TRAILER DIMENSIONS

Package: 1

MOQ: 1 unit

Shipping Method: Bulk or RORO vessel

Validity: 40 days

Type of detachable gooseneck low bed with dolly

General information

Dimensions (L x W x H): 22,000*3,000*1,780

Payload: 80 ton

Deadweight: 22,000

Suspension: argonaut suspension

Subframe

Drums: Air drums in the brake system;

Hubs: Cast steel 10 studs and oil seals;

Tires: 8.25R216 size, no. of tires + 1 spares depending on axles types;

Axles: 20 tons type, YUEK;

Axle number: 12;

Brakes: dual-line brake system, non-asbestos;

ABS system: None;

Valve: WABCO emergency relay valve

Brake chambers: 30/30 chambers and air-actuated

Springs: 2010/10/10

Underframe

Main beam: I shape, 500mm height and mild alloy Q460;

Tensile strength: 46kg/mm2

Automatic submerged arc welding: Top flange thickness: 3mm

Bottom flange thickness:3mm

Middle flange thickness: 3mm

Crossbeam: U shape and mild alloy Q345b

Tensile strength: 34.5kg/2

Kingpin: 3.5-inch welded-type jots

Landing gear: JOST D200

MUD flaps: None

Appendix: one toolbox

Hydraulics: INTEVA

Other Information

The effective deck height of the lowered platform to ground: 800mm

Expose tire deck: 32

Tire size/ tire type: 8.25R 15 double coin

The thickness of chassis beam: 30mm

Mean beam date: As upon (Automatic submerged arc welding)

Guaranty and warranty: One year

After-sales parts support: Yes

How to claim: Commissioning on site for first after-sales service

Spare parts support: Yes

Spare parts manual: Yes

Spare parts cost and list in advance: Yes

English manuals: Yes

Options :

- Engine – Chinese, type, brand, specification/JAC 4kw donkey engine

- Rear ramp

If you want to know more types of heavy transport trailers, please visit our website.
