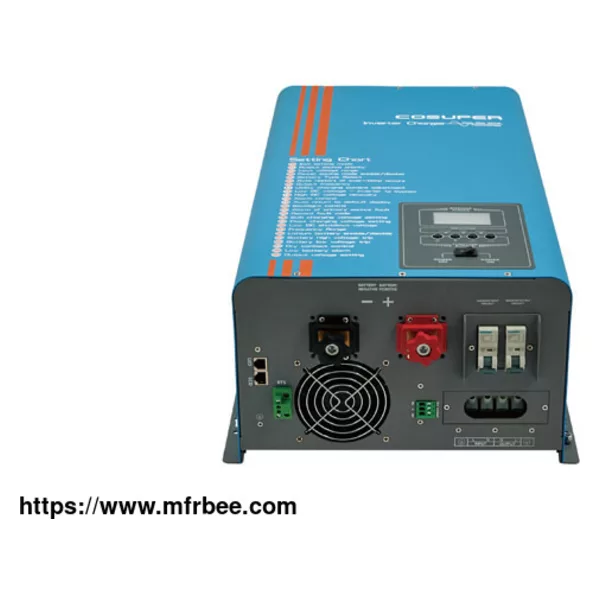

48VDC 120V/240VAC 6000W SPLIT PHASE INVERTER CHARGER

The Cosuper DPT6000 Split Phase Inverter Charger is capable of producing 120V/240V AC power. This heavy-duty inverter charger is Specifically designed for North America and or anywhere in the world that use 120VAC/240VAC dual output power.

By combining RS485 communication and main battery charger, the 48VDC inverter charger is able to satisfy various requirement of monitoring and interactive control. With function botton on inverter to get into “engineering mode”. Inverter parameters can be customized freely for specific application.

This whole home power inverter is great for your emergency battery backup for when the grid goes down with an unnoticeable transfer time of 8ms, or for use as a standalone off-grid system. Save your power bill with this 48 volt charger inverter. Use this 48VDC inverter charger in your coach, RV, large toy hauler or fifth wheel. It will provide you with plenty of power for your mobile home, boat house or yacht. No sense in dealing with noisy diesel engines when you can have quiet, efficient and free power provided by the sun.

FEATURES OF 48VDC 120V/240VAC 6000W SPLIT PHASE INVERTER CHARGER

6000W pure sine wave

This kind of split phase inverter charger is equipped with RS485 communication modules

Low THD ensure sensitive loads working stably

MAX. 60A charge current compatible with AGM/GEL/Flooded/Lithium batteries

Heavy duty design for motor loads

High working temperature tolerance for -10~50℃ at 100% continuous output

Battery temperature compensation for energizing battery in cold environment

Ultra-low idle consumption could effectively save the energy

Auto GEN start/stop

2 years warranty

TECHNICAL SPECIFICATIONS OF 48VDC 120V/240VAC 6000W SPLIT PHASE INVERTER CHARGER

Models DPT6000

Rated Power(-10-50℃) 6000W

DC Input

Rated Voltage 24VDC (20.0~32.0VDC)x2 for 48VDC

Max. Charge Current 75A-house battery

Battery Type AGM/Gel/Flooded/Lithium

AC Input

Output Voltage 170-275VAC

Input Frequency 45~65Hz

AC Output

Output Voltage 120/240VAC±5%

Oput Frequency 50/60Hz±0.3

Wave Form Pure Sine Wave

Transfer Time ≤8ms

Efficiency >88%

Overload 105-120% 10s/ >120% 3s/ >150% 1s

Max. Bypass 7200W

Protection DC over/low volt, AC input low/low volt, AC short circuit, over temp, overload

Self-consumption 50.0W

Idle-consumption 23.5W

Protection

DC Low-volt Alarm/Shutdown 21.0V (Customizable at Engineering mode); x2 for 48VDC

AC Low-volt Switch To DC 187.0V (Customizable at Engineering mode)

Bypass To Invertering 198.0V (Customizable at Engineering mode)

Battery Over-charge Shutdown 31.4V

General

Working Temperature -10~45℃

Storage Temperature -20~55℃

Work/ Storage Humidity 0-90% No condensation

Dimension (W*D*H) 607*308*198mm
