48VDC 120V/240VAC 4000W SPLIT PHASE INVERTER CHARGER
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

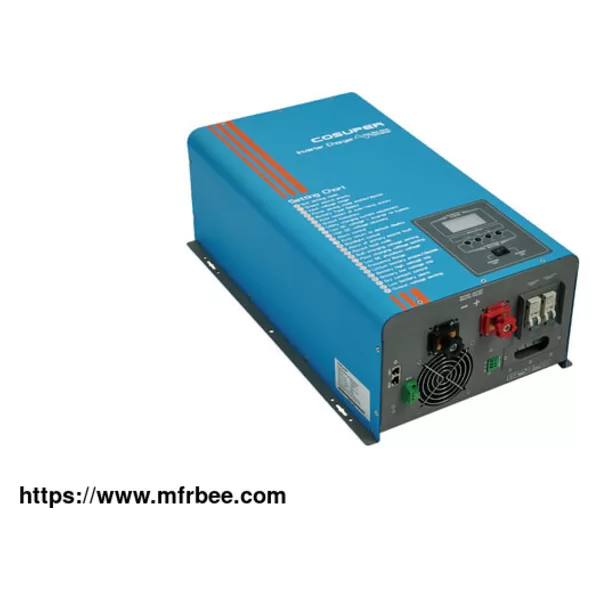

The Cosuper DPT4000 Low Frequency Split Phase Inverter with built-in battery charger and auto transfer switch is ideal for medium-sized mobile, off grid, emergency and backup power applications.
This heavy-duty 48V split phase inverter is Specifically designed for North America and the area that uses 120VAC/240 volt split phase inverter. It is ready to go wherever you need it.
This 48V split phase inverter will never completely drain your batteries as its low voltage shutdown keeps the voltage at 21V/42V according to your choice. With the battery priority mode, you can
set your inverter to run directly off of a battery instead of a generator or shore Power. This 48V split phase inverter comes with a power saving mode that can save your precious reserve power in
your batteries until you need it.
An optional wired PTM-12 remote controller or CR10 control center allows you to observe and control from a distance if your inverter charger is mounted in a place that is inconvenient to operate.
FEATURES OF 48VDC 120V/240VAC 4000W SPLIT PHASE INVERTER CHARGER
4000W pure sine wave
Support RS485 communication
Low THD ensure sensitive loads working stably
MAX. 60A charge current for AGM/GEL/Flooded/Lithium batteries
This kind of split phase power inverter has a heavy duty design for motor loads
Keep working continuously with full power output at -10~50℃
Battery temperature compensation charging design in cold and warm conditions helps prolong the battery life
Ultra-low idle consumption could effectively save the energy
Auto GEN start/stop
Electronic protection against Over/under voltage, overload, overheating, short circuit
2 years warranty
TECHNICAL SPECIFICATIONS OF 48VDC 120V/240VAC 4000W SPLIT PHASE INVERTER CHARGER
Models DPT4000
Rated Power(-10-50℃) 4000W
DC Input
Rated Voltage 24VDC (20.0~32.0VDC)x2 for 48VDC
Max. Charge Current 60A-house battery
Battery Type AGM/Gel/Flooded/Lithium
AC Input
Output Voltage 170-275VAC
Input Frequency 45~65Hz
AC Output
Output Voltage 120/240VAC±5%
Oput Frequency 50/60Hz±0.3
Wave Form Pure Sine Wave
Transfer Time ≤8ms
Efficiency >88%
Overload 105-120% 10s/ >120% 3s/ >150% 1s
Max. Bypass 6000W
Protection DC over/low volt, AC input low/low volt, AC short circuit, over temp, overload
Self-consumption 35.0W
Idle-consumption 23.5W
Protection
DC Low-volt Alarm/Shutdown 21.0V (Customizable at Engineering mode); x2 for 48VDC
AC Low-volt Switch To DC 187.0V (Customizable at Engineering mode)
Bypass To Invertering 198.0V (Customizable at Engineering mode)
Battery Over-charge Shutdown 31.4V
General
Working Temperature -10~45℃
Storage Temperature -20~55℃
Work/ Storage Humidity 0-90% No condensation
Dimension (W*D*H) 607*308*198mm
