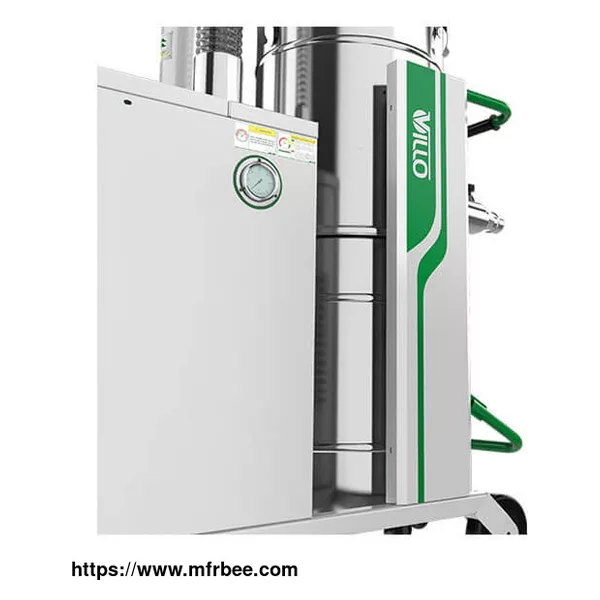

VZ Series – Heavy Duty Industrial Vacuum Cleaner
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 10
- Packaging
- N/A
- Delivery
- 1month
Specifications
VZ/VZS Series are the Heavy Duty Industrial Vacuum Cleaners with high pressure, very ideal for sucking/absorbing large mixed particles or chips in continuous applications or installed to
centralized extraction units.
Parameters of VZ Series – Heavy Duty Industrial Dust Vacuum Cleaner
Model VZ-22 VZ-30 VZ-40 VZ-55 VZ-75
VZS-22 VZS-30 VZS-40 VZS-55 VZS-75
Voltage(V / Hz) 380 / 50
Power (kW) / (HP) 2.2/3.0 3.0/4.0 4.0/5.5 5.5/7.5 7.5/10.0
Starting current （A） 30 40 60 85 100
Rated current（A） 5.6 7.2 9 12.9 16.7
Max vacuum (mmH₂O) / (kPa) 2000 / 19.6 2100 / 20.6 2200 / 21.6 2200 / 21.6 2300 / 22.6
Noise dB (A) 72±2 74±2 75±2 76±2 78±2
Dia. air inlet (mm) / (in) Ø 50 / 2
Filter area(m²)/ (sq.ft) VZ series 1.5 / 16.1
VZS series 3.0 / 32.3
Filter efficiency >99%
Capacity of collection barrel (L) / (gal) 100 / 26.4
Dimension [L*W*H]
(mm) / (in) 1360*670*1525 / 53.5*26.4*60
Weight(kg)/ (lb) 132 / 291 140 / 308 148 / 326 171 / 377 174 / 384
It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value
Features of VZ Series – Heavy Duty Industrial Vacuum Unit Cleaner
Customizable voltage
Power less than or equal to 2.2 kilowatts can be made into single phase.
Equipped with filter cleaning device for easy filter cleaning.
Maintenance free powerful turbine motor can work continuously for 24 hours
Pressure gauge to detect filter clogging.
Easy dust container cleaning.
Applications of VZ Series – Heavy Duty Industrial Vacuum Cleaner
Suitable for three phase working conditions.
Very ideal for continuous working and heavy dust with fine dust condition.
Industries:
Metal Processing (grinding, cutting, drilling, etc.)
PCB (cutting, drilling, routing, etc.)
Machine Cleaning.
