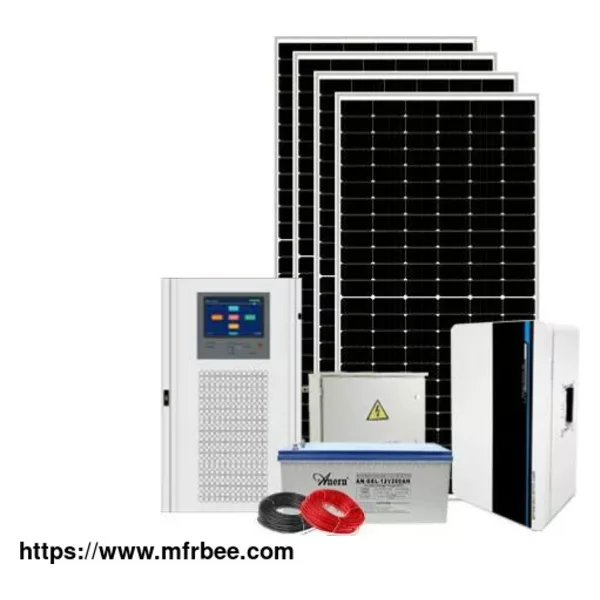

15KW-50KW Commercial Off Grid Solar Power Storage System

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Commercial solar power supply systems are mainly aimed at high-power commercial and industrial electricity applications. If your house has many high-power appliances and the daily power consumption is large, then the 15KW 20KW 30KW 50KW off grid solar power systems are prepared for this.

This series of off grid solar solutions can carry up to 50KW of electrical appliances, and the maximum power generation is 200KWH per day. Using the newly developed MPPT controller, the conversion efficiency of 99% is almost no waste of electricity from the solar panels.

Basically in any country, commercial electricity and industrial electricity are generally attributed to residential electricity, and electricity bills have long been a huge cost. The 10kw solar system can greatly reduce the use of city electricity by converting free solar resources into electricity, and even completely replace the use of city electricity, which can save a huge amount of electricity bills in one year.

At the same time, solar panels have a service life of up to 25 years, and in the long run, the return on investment is high.

The Details of 15KW-50KW Off Grid Solar Storage System

Rated DC96V/DC192V input, AC220V 1-phase output; Frequency: 50 Hz +/- 0.5%True sine-wave, off-grid type; LCD display of operating parameters; • Protections: Short circuit, overload, surge current, ov...

Rated DC192V / DC360V input, AC380V 3-phase output;

Frequency: 50 Hz +/- 0.5%

True sine-wave, off-grid type; LCD display of operating parameters;

12V 200AH/250AH GEL valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance typeService Life: 5~6 years 48V/200AH Super Graphene LifePo4 lithium cellWall-mounted design, easy in...

Lead-acid Battery: Deep cycle、Free Maintenance、Fully sealed

PV Array Combiner, Solar Panel Rack, Cables- Wide range of DC input voltage- IP65 guard level, suitable for outdoor- Reliable thunderstorm & surge protection

PV Array Combiner, Solar Panel Rack, Cables

- Wide range of DC input voltage

- IP65 guard level, suitable for outdoor

- Reliable thunderstorm & surge protection

Type: Half-cell Monocrystalline PV ModuleMax Power: 550W25 years power output guarantee

Type: Half-cell Monocrystalline PV Module

Max Power: 550W

25 years power output guarantee

The Details of 15KW-50KW Off-Grid Solar Storage System

Full power, the high conversion rate of solar panels, with the maximum single solar panel power up to 550W, and the service life is up to 25 years, which greatly improves the power generation per unit area.

The 12V 200AH/250AH deep-cycle gel battery has many cycles, low self-discharge, and long service life.

Using MPPT controller, the conversion efficiency is as high as 98%.

It can be equipped with a WIFI remote monitoring system, and users can read the system operation status through a mobile APP any time.

Solar panels use cells with a conversion efficiency of up to 22%. The same number of solar panels will generate more power.

The optional WIFI monitoring module can monitor the power generation and operation of the system through the mobile phone APP.

The Specification of the 15KW-50KW Off-Grid Hybrid Solar Storage System

Model OFF-SGHP-15KW OFF-SGHP-20KW OFF-SGHP-30KW OFF-SGHP-50KW

Solar Panels Rated Power 15KW 20KW 30KW 50KW

Inverter Rated Output Power 15KW 20KW 30KW 50KW

Daily Power Consumption >60KWH >80KWH >120KWH >200KWH

Solar Panel 27pcs 550w 36pcs 550w 56pcs 550w 91pcs 550w

Solar Inverter 1pcs 15KW 1pcs 20KW 1pcs 30KW 1pcs 50KW

Battery 32pcs 12V250AH 48pcs 12V200AH 60pcs 12V250AH 90pcs 12V250AH

Gel battery Gel battery Gel battery Gel battery

Charge controller 192V 80A 192V 100A 360V 80A 360V 80A

PV Array Combiner 1pcs 1pcs 1pcs 2pcs

Solar Panel Rack Roof-type mounting rack including complete fittings, aluminum alloy (Rack can be customized per request)

The Production of 15KW-50KW Solar Storage System

20kw solar system accessories are on mass production. Our company strictly follows the international standards for solar products production and carries out a detailed division of labor for the assembly process of each accessory to ensure that each process has quality inspections. The final product will also undergo at least 48 hours of continuous aging to ensure that every solar component can meet the client's requirements.

If you want to know more about 10kw off grid solar system price , 15kw off grid solar system price, solar panels 20kw system price, please visit our website.

As an led light manufacturer, we will do our best to meet all the needs of customers.
