SS Membrane Module

FOB Price: USD $600.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

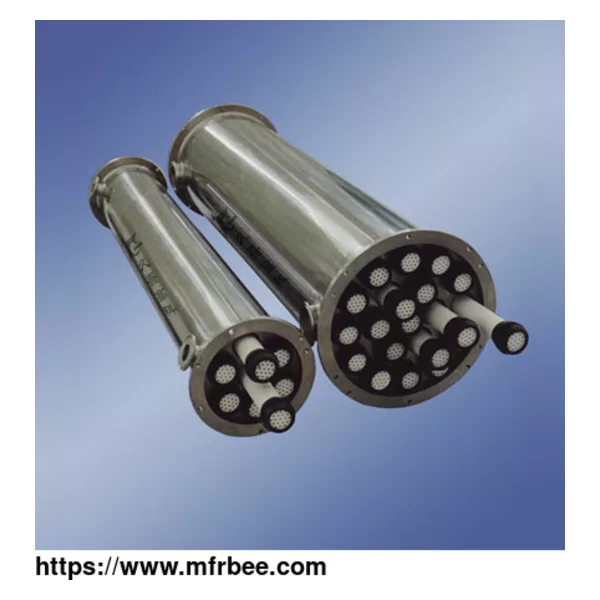

The stainless steel membrane module is designed by different applications. Stainless steel could be used as the material of module/housing, that is, ss membrane housing.

Jiuwu hi tech company could produce the extra large stainless steel membrane housing as customer demand, such as loading over 91 pcs membranes. It also can be 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 pcs membranes.

OVER VIEW OF SS CERAMIC MEMBRANE HOUSING

Ceramic membrane element has a variety of narrow distribution, high porosity, high capacity per unit membrane surface area.

Ceramic membrane element needs to be used and operated in normal operating procedures. The following conditions and chemicals of operation are absolutely not allowed, because it may destroy or damage the element:

Sharp variations in pressure;

Vigorous variations in temperature, △≤5℃/min;

Meet with strong acid and alkali with high concentration and temperature in a long time such as hydrofluoric acid, sulphuric acid ,hydrochloric acid in combination with stainless steel housings, formic or acetic acid at high concentration and high temperature, silicates, acrylics, varnish, silicon soil, resins, wax;

Filtering high viscosity liquid or liquid containing large rigid solid granules;

Using pumps without a soft starter or frequency converter;

Strike or knock on purpose;

CHARACTERISTICS OF STAINLESS STEEL MEMBRANE HOUSING

Number of loading membrane elements: 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 pcs

Matching membrane element length Diameter: 500, 1000, 1200mm / diameter: 25, 30, 40 mm

Main body material: SUS304 (L), SUS316 (L)

Sealing material: EPDM, Fluoro Rubber, Silicon, PTFE

Interface: Flange, Clamp, Whorl coupling

Pressure level: 0-1.0Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4.0Mpa

Standard: ISO, DIN / chemical grade, sanitary grade

APPLICATION OF SS CERAMIC MEMBRANE HOUSING

1. Food & Beverage

Sweetener

Wine (beer membrane filtration)

Fruit and vegetable juice

Dairy

Flavoring and seasoning

Natural herb extract

Enzyme

2. Bio-Pharm

Fermentation broth-antibiotic (including purification of antibiotics)

Fermentation broth-amino acid

3. Chemical and Petro-Chemical

Natural rubber (skim latex)

polysolicon cutting fluid recovery

Brine filtration

4. Water & Wastewater Treatment ( ceramic membranes for wastewater treatment )

Oilfield injection water

Paper industry wastewater treatment

Textile and printing industry wastewater

Oily wastewater treatment

Titanium dioxide water treatment

Pharmaceutical/chemical industry wastewater

Desalination/seawater treatment

Landfill leachate

Degreasing liquid treatment

Palm oil wastewater
