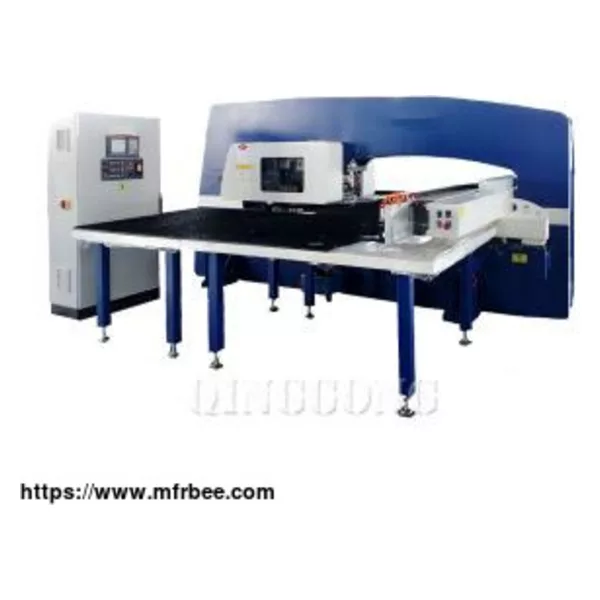

SERVO CNC TURRET PUNCHING MACHINE

Place Of Origin: Qingdao City, China
FOB Price: USD $6,893.00 / Piece

Minimum Order: 100

Packaging: convenient pack

Delivery: 10-15 days

The main transmission of servo turret punching machine is directly from drive servo punch press, which retains the advantage of a simple and reliable structure as mechanical transmission, it features high efficiency, energy saving, low noise, high accuracy, and can realize many processes like die-cutting, forming, beading, lettering and so on.

Features

Servo drive

Direct driving structure

Sealed oil tank, prefect lubricating with lower temperature rising.

Turret

32 working stations

Material: 40Cr

Pair machining in large scale machine center.

Adopt Amada standard long tools.

Super high accuracy position pin ensures the aligment of punch and die

Auto-index

Worm and gear driving structure ensures the accuracy of double direction.

Singal synchronous driving belt ensures the accuracy of punch and die.

Bushing

Each station has high accurate bushing.

40Cr material

International standard long toolings

Driving

T axis is driving by one servo motor with chains

C axis is driving by one servo motor with a belt.

Basic Specification

Serial Name unit Parameters

1 Model / S30-A S30-B

2 Workstation number 26 32

3 Punching pressure KN（T） 200（20）

4 Punching form / servo drive

5 Frame structure / Closed bed

6 machined sheet metal X mm 5000（Relocating with one time）

Y mm 1250 or 1500

7 thickness of machined sheet metal mm ＜6

8 stamping frequency cpm ＜1500

9 Pliers number only 3

10 Clamp mechanism / Pneumatic

11 Repositioning cylinder set 2

12 Rotating station / 2

13 Control axis number / 5（X、Y、W、C、A）

14 Turntable diameter mm 1040

15 Mould form / Thick turret and long die

16 Worktable structure / Brush plate and floating universal ball

17 Punching accuracy of primary positioning mm ±0.1

18 maximum carrying weight Kg ＜150

19 Gas source Mpa 0.5

20 Total power KW 30

21 speed of sheet movement m/min ＜70

22 Rotating tower speed r/min 30

23 Machine weight ton 12

24 Outer size mm 4600*5100*2000

Mold distribution

～12.7mm B

～31.7mm C

～50.8mm D

～88.9mm

26 turret (including 2 B stations rotating) 10 12 2 2

32 turret (including 2 B stations rotating) 16 12 2 2

Now the price of roller punching machine is reasonable, if you have needs, please contact us.

As one of shot blasting equipment manufacturers, we can offer sorts of steel plate shot blasting and painting line for sale, if you are interested, please contact us.
