Brief Introduction:

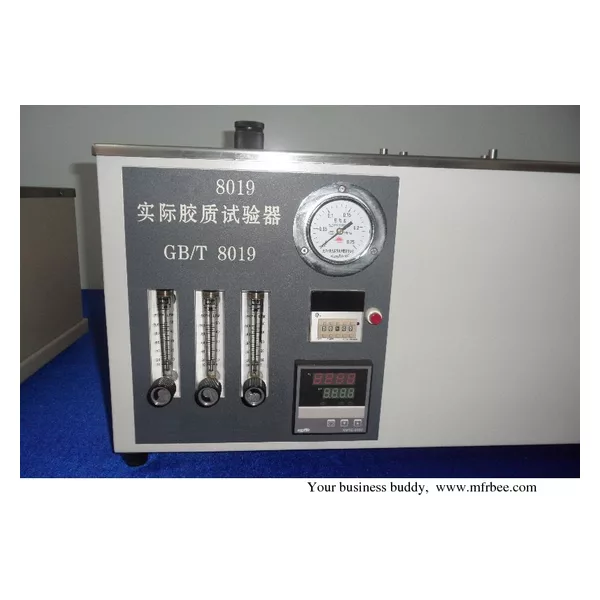

The GD-8019 Existent Gum Tester is specially used to determine content of existent gum in the aviation gasoline and vehicle gasoline.
It is suitable to make determination for existent gum of aviation gasoline and vehicle gasoline as per the national standard of People’s Republic of China GB/T8019-2008 Test Method for Existent Gum of Fuels (Jet Evaporation Methods).

Main technical specifications and parameters
1. Power supply: AC 220 V±10%, 50 Hz, 2500W
2. Type and size of evaporation bath: aluminum bath, Φ260mm×130 mm
3. Quantity of test cylinder hole: 3 pieces (can do 3 test one time)
4. Size of test cylinder hole: Φ51mm×70 mm
5. Working temperature: 160°C~165 °C
6. Temperature controlling method: automatic
7. Temperature indication: digitally displayed
8. Flow rate indication: indicated by flow meters
9. Working pressure of decompression valve: 0.035 MPa
10. Air source: compression air >1000±150 ml/s
11. Dimension: 590mm×480mm×340 mm
