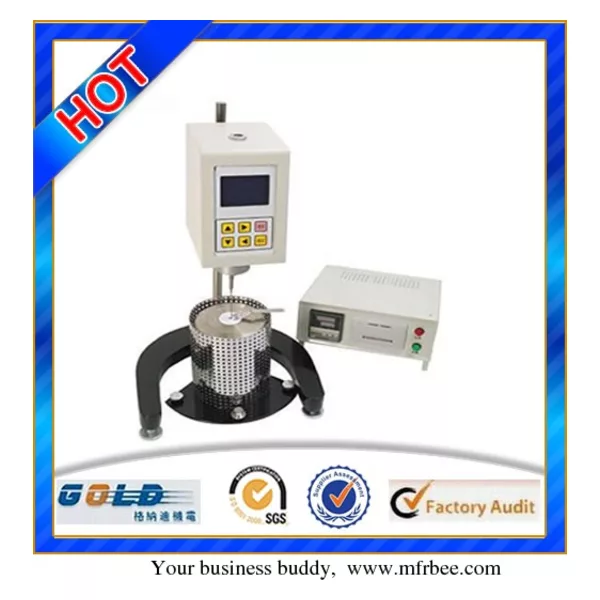

GD-1F High Viscosity Liquid Brookfield Viscometer

GD-1F High Viscosity Liquid Brookfield Viscometer

Characteristics and Advantages:

designed and made as per T0625 in JTG.E20.
widely used in testing Asphalt, hot melt adhesive, paraffin wax, high polymer and other fluid
adopts a LCD display,i can show the viscosoty of samples(mPa.s),spindle No.,speed(RPM) ,temperature,torque(per cent),shearing stress,shearing rate and the measurement rage
press the rotational speed as the scale and stepless regulation to satisfy the continuous test
spindle is made of SS,anti-corrosion,convenient for user
optional:application software ,heating stove up to 300°C and controller

Main technical specifications and parameters:

1. Measurement range: 25 mPa·s~1×107 mPa·s ( If choosing the No.30 spindle, the measurement range can extend to 2×107 mPa·s)

2. Spindle: No. 21, 27, 28, 29 total four types of spindles (the No.30 is optional)

3. Spindle speed: 0.1~200 RPM, continuously speed regulation (With 12 grades of speed)

4. Measurement error: ±2% (F·S), choosing the No.30 spindle, it will be ±3% (F·S)

5. Temperature controlling range: 25 °C~200 °C

6. Temperature controlling accuracy: ±0.1 °C

7. Sample cylinder cubage: 20 ml

8. Power supply: AC 220 V±10%, 50 Hz

9. Ambient temperature: 5 °C~35 °C (when the control temperature of the heater is close to the ambient temperature, turn on the air conditioner to allow the ambient temperature is approximately 5 °C lower than the control temperature of the heater);

10. Relative humidity: ≤80%

Spare parts:

1.main unit

2.spindle

3.temperature controller

4.heater

5.sample container,shelf for sample container,cover for sample container,speacial clamp,wire fo sensor

6. optional parts:application software ,heating stove up to 300Deg C and controller

Same Series Products:

Type	NDJ-1C	NDJ-1D	NDJ-1F
Range	100~0.2million	100~2million	25~10million
Speed(RPM)	5/10/20/50	0.5/1/2/5/10/20/50	0.1~100(Stepless)
Spindle	21#.27#.28#.29#	21#.27#.28#.29#	21#.27#.28#.29#
Accuracy	±1% full scale	±1% full scale	±1% full scale
Controlling temperature	ambient~200°C	ambient~200°C	ambient~200°C
Resolution	±0.1°C	±0.1°C	±0.1°C
Repeatibility	±0.5%	±0.5%	±0.5%
Optional parts	300°C heater	300°C heater	300°C heater
