GDYJ-501 Cost-effective Automatic Insulating Oil Tester
Product sourcing details
- Place of Origin
- ChongQing,CHINA
- Packaging
- one full set in one plastic or wooden box
Supplier: ChongQing Gold Mechanical & Electrical Equipment Co., Ltd.
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications

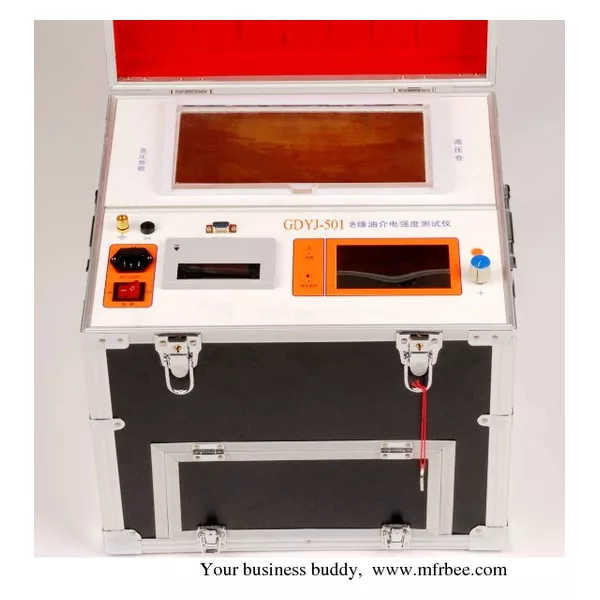

GDYJ-501 Cost-effective Automatic Insulating Oil Tester
Functions:
1. Breakdown test of
user-defined
2. Proof
test
3.
Calibration interface for customers
4. Uploading data to PC
and making word report
automatically.
5. Result
print
Technique index:
1. Output voltage: AC 0~80KV/AC 0~100KV
2. Rate of voltage rise:
2KV/s±10%
3. Measuring
precision:
3%RDG+0.3%FS
4. Test times setting: 1-9
5. Mixing time setting:
0~99 second
6. Waiting
time setting: 0-9 minute 59second
7. Maximum storage capacity: 100 groups
of test data
8. Test
standards: IEC60156
9. Display:
256´128 LCD
10. Rated
power supply: AC 220V±10% 50Hz/60Hz
11. Environment temperatures: 0-50°C
12. Relative humidity
≤80%RH
13. Size:
420mm×380mm×410mm
14.
Weight: 28kg
