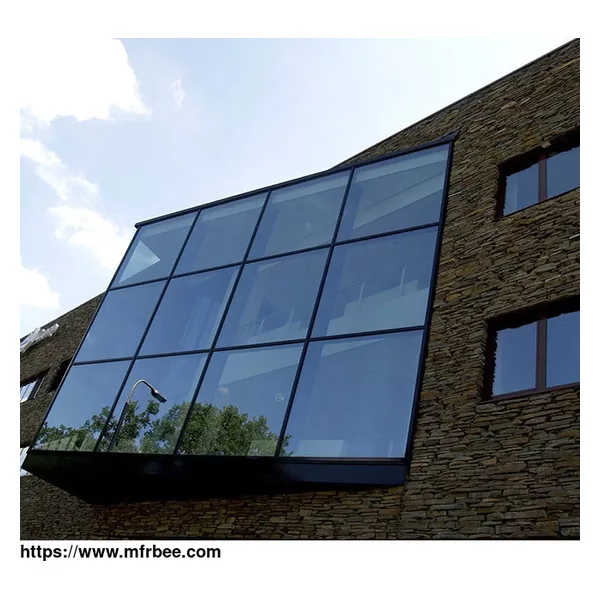

CSCW-N180 Stick Curtain Wall

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Stick built curtain wall CSCW-N180 is an efficient and reliable curtain wall system with 80mm width profile sightline. Compare to unitized curtain wall, it is flexible for different construction condition and structures, and offer a competitive product cost.

Overview of CSCW-N180 Stick Built Glass Curtain Wall

System Stick Curtain Wall (Non-Thermal Break)

Model No. CSCW-N180

Material Aluminum Alloy/Glass/Aluminum Sheet/Aluminum Composite Panel/Galvanized Sheet

Glass Type Tempered/Float/Laminated/DGU/Ceramic Fritted/LowE/Tinted/Reflective/Heat Soak

Cooperated Glass Brand Vitro (Formerly PPG) /Pilkington/Xinyi(SYG)/Yaopi (SYP) /Fuyao/Southglass (SG) /Kibing/CNG/TaiwanGlass

Surface Treatment Powder Coating/PVDF/Anodized/Electrophoresis/Wooden Grain

Profile Brand 6063-T5/6063-T6/6061-T6 (Brackets)

Thermal Profile Non-Thermal Break

Standards In Compliance With ASTM/AS/NZS/AAMA/NFRC/EN/BSI/ISO

Application Residential Apartment, Villa/Commercial Hotel, Mall, Office, Public Organization

System Customization Available

Data of of CSCW-N180 Stick Built Curtain Wall System

Testing Data of CSCW-N180 Stick Curtain Wall

Design Wind Pressure Wsls=+1.61KPA/-2.09KAP, Wuls=+2.49KPA/-3.23KPA

Test Pressure Results

Preloading(Clause 8.2.2 of AS/NZS4284:2008） +1.61kpa No separation, plastic deformations or deleterious was observed.

-2.09kpa

Preliminary Water Penetration Test under Static Pressure (Clause 8.2.3 of AS/NZS 4284:2008) +482kPa There were no leaks.

Preliminary Water Penetration Test under Cyclic Pressure (Clause 8.2.3 of AS/NZS 4284:2008) 241-482-241 (Pa) There were no leaks.

321-642-321 (Pa)

482-964-482 (Pa)

Structural Test at Serviceability Limit State Wind Pressure (Wsls)(Clause 8.3 of AS/NZS 4284:2008) +1.61kpa During the structural test at SLS wind pressure, the deflections of all related members were within the allowable deflection limits.

-2.09kpa

Air Infiltration Test (Clause 8.4 of AS/NZS 4284:2008) +/-165Pa The rate of air leakage of the specimen was within the allowable values.

Water Penetration Test under Static Water Penetration Test under Static 4284:2008) +482Pa There were no leaks.

Water Penetration Test under Cyclic Pressure (Clause 8.6 of AS/NZS 4284:2008) 241-482-241 (Pa) There were no leaks.

321-642-321 (Pa)

482-964-482 (Pa)

Structural ProofTest at Ultimate Limit State Wind Pressure (Wuls) (Clause 8.8 of AS/NZS 4284:2008) +2.49kpa No collapse of the test specimen was observed under the specified pressure.

-3.23kpa

Seal Degradation Test(Clause 8.10 of AS/NZS 4284:2008) 241-482-241 (Pa) No water leakage was observed.

321-642-321 (Pa)

482-964-482 (Pa)

Thermal Data of CSCW-N180 Stick Curtain Wall

NFRC Procedures NFRC100SB, NFRC200-2010, and NFRC500-2010

Software Tools THERM 7.4.3.0 and WINDOW 7.4.6.0

Configuration 6 CLR-TDE33D 8mm HS #2 + 12AR + CLR 10mm HS IGU

Panel Dimension 1705mm Wide 3245mm High

Frame Painted Aluminum

Panel U-value 3.041W/m2k

Visible Light Transmission 0.271

SHGC 0.197

Frame Data of CSCW-N180 Stick Curtain Wall

Parts Location Frame Area/m2 Edge Area/m2 U-Value(Frame) U-Value(Edge)

W/m2k W/m2k

Header 0.0638 0.0946 4.60438 1.31648

Left Jamb 0.1397 0.1826 16.32147 1.85603

Right Jamb 0.1397 0.1826 26.14535 2.18867

Sill 0.3608 0.0946 6.32962 1.72348

Glass Data of CSCW-N180 Stick Curtain Wall

Glass Data: CLR-TDE33D 8mm HS #2 + 12AR + CLR 10mm HS IGU

Visible Light SHGC SC NFRC U-value STC

W/m3k(Argon)

T% R-out% R-in% Winter Summer

31.9 20.9 16.5 0.209 0.242 1.705 1.694 39.6

Benefit of of CSCW-N180 Stick Built Glass Walls

Certified performances in terms of air, water tightness and wind pressure.

Flexible for on-site installation

Cost efficient product compare to competition

Vast alternatives in custom solutions tailor made to the building

Enhancement of natural light

Increased static robustness, even in extreme natural phenomena

Minimum after sales service & maintaining

Increased comfort level
