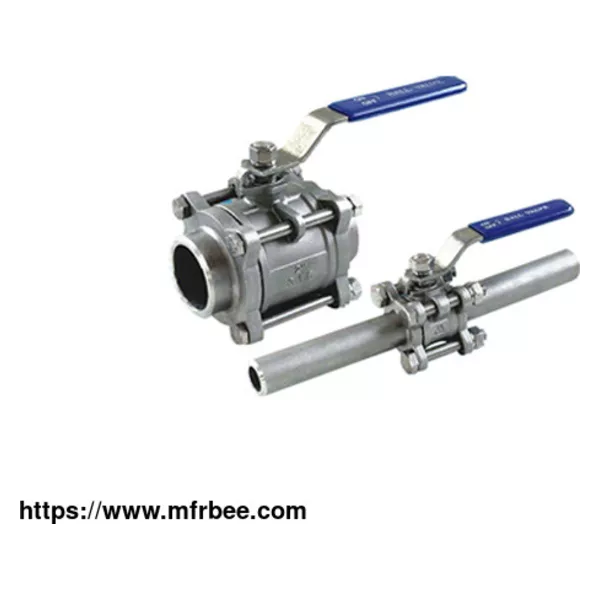

QSL3S-2 3PCS Ball Valve Butt-Welding

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Butt weld ball valve closure member is a sphere, it is relying on the sphere around the centerline of the valve body 90-degree rotation to achieve open and close a valve. The straight-through ball valve is mainly used to cut off the medium in the pipeline. There is a two-piece and three-piece structure. Butt welding methods include socket welding, groove welding, and flat welding. The butt-welded ball valve is a new type of valve that has been widely used in recent years. These valves can be installed horizontally or vertically.

QSL3S-2 3PC Ball Valve Butt-Welding Dimensions

SIZE L BW E H D T

1/2" 135 10.2 122.9 58 12.7 1.24

3/4" 135 15.8 122.9 61 19.05 1.65

1" 152 22.1 144.9 68 25.4 1.65

1-1/4" 157 28.5 144.9 73.5 31.8 1.65

1-1/2" 190 34.8 188.9 84.5 38.1 1.65

2" 204 47.5 188.9 93.2 50.8 1.65

2-1/2" 254 60.2 255.3 131.8 63.5 1.65

3" 280 72.9 260.8 140 76.2 1.65

4" 306 97.4 322.2 173.6 101.6 1.65

3PC Ball Valve Butt-Welding VS Threaded

1. Material:

Both material of 3 pc ball valve butt-welding and threaded ball valve can be CF8, CF8M, CF3M.

2. Pressure:

Both pressure of 3 pc ball valve butt-welding and threaded can be 200WOG, 800WOG, 1000WOG, 1500WOG, 2000WOG

3. Range of Applications (Difference):

Stardard: ANSI, BS, DIN (similarity)

Sealing Material: PTFE, R-PTFE (similarity)

Connection type:Butt-Welding end

4. Installation (Difference):

3PC ball valve butt-welding need to be welded with pipe installation, threaded end ball valves connect directly with thread.

QSL3S-2 3PC Ball Valve Butt-Welding FAQs

Where Are Ball Valves Mainly Used For In A Process System?



Ball valves are used in high pressure lines as an isolation valve.

What Is The Size Available For 3pc Ball Valve Butt-welding?

If you want to know more kinds of stainless steel valves, please visit our website.
