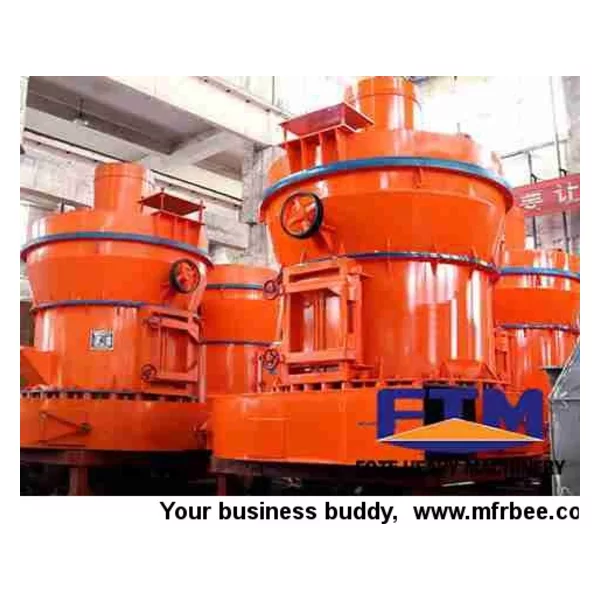

Raymond Mill
Product Quick Detail
- Packaging
- standard containers, bare main machine, motors and small parts are packed in wooden cases.
- Delivery
- 20 Days
Specifications
Feed Size: ≤15 - ≤30 mm
Processing Capacity: 2 - 120 t
Processible Materials: Quartz, feldspar, calcite, talc, barite, fluorite, rare earth, marble, bauxite, manganese ore, iron ore, copper ore, iron oxide red, slag, grain slag, clinker, active carbon, granite, iron oxide yellow, bean cake and chemical fertilizer.
Application Range: Metallurgy, construction materials, chemical engineering, mining, agriculture.
Fote raymond mill has advantages of well-structured, high efficiency, low energy consumption, small footprint, low capital investment and environmental pollution, etc.
.jpg)
Raymond Mill Introduction:
Raymond mill (also known as raymond grinder, raymond grinding mill and raymond pulverizer) is commonly used grinding equipment, mainly used for grinding barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate ore, gypsum, glass, insulation materials and other materials with Mohs hardness not more than 7 degree and humidity below 6% in mineral, chemical, construction and other industries. Final size of finished products can be adjusted within 60-325 meshes.
Raymond Mill Working Principle:
When the milling equpment works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.www.china-ftm.com/pros/product.html
Technical Datas of Raymond Mill
| Parameter | 6R4525 | 5R4119 | 4R3216 | 3R90 | 3R85 | 3R75 | 3R65 | 3R60 |
| 4R90 | 4R85 | |||||||
| Feeding size (mm) | ≤30 | ≤25 | ≤25 | ≤25 | ≤20 | ≤20 | ≤15 | ≤15 |
| Particle size of finished product (mm) | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 |
| Shift output of different material fineness (t) | 16-120 | 8-60 | 4-45 | 3-35 | 2-28 | 1.5-20 | 1-18 | 0.5-8 |
| Rotation speed of central shart (r/min) | 82 | 105 | 130 | 160 | 160 | 160 | 180 | 280 |
| Diameter of pulverizing ring (mm) | 1770 | 1400 | 1073 | 973 | 885 | 865 | 725 | 495 |
| Diameter of pulverizing roller (mm) | 450 | 410 | 320 | 300 | 270 | 260 | 210 | 140 |
| Height of pulverizing roller (mm) | 250 | 190 | 160 | 160 | 150 | 150 | 150 | 100 |
| Main Motor | Y315m- 4-132 | Y280s- 4-75 | Y225s- 4-37 | Y225m- 8-30 | Y225m- 8-22 | Y225s- 8-18.5 | Y200L- 8-15 | Y160m- 6-7.5 |
| Fan Motor | Y315m- 4-132 | Y250m- 4-75 | Y200L- 4-37 | Y180m- 4-22 | Y160L- 4-15 | Y160L- 4-15 | Y160m- 4-11 | Y132s- 2-5.5 |
| Analyzer motor | Y160m- 4-18.5 | Yc200- 4B-7.5 | Yc120- 4a-5.5 | Y112m- 6-2.2 | Y112m- 6-2.2 | Y112m- 6-2.2 | Y112m- 6-2.2 | Y90L- 6-1.1 |
Dust Collector
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Asia,Emerging Markets,Middle East,Oceania
- Founded Year:2014
- Address:河南省郑州国家高新技术产业开发区檀香路8号
- Contact:fotemachinery china
