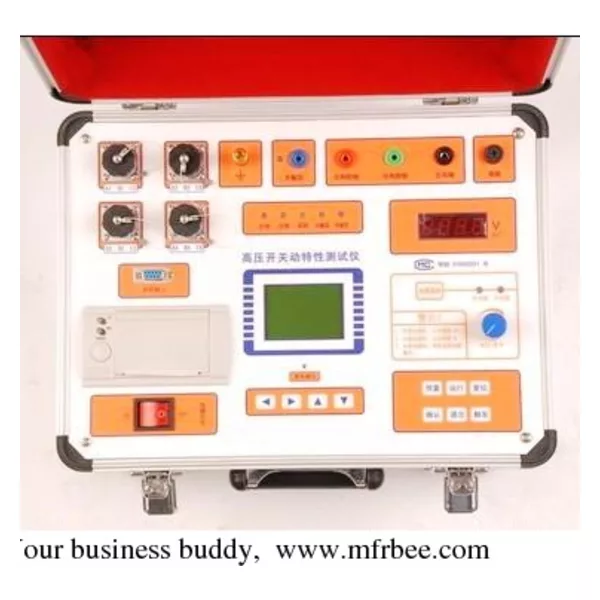

GDGK-303 High Voltage Switch Testing Equipment
Product Quick Detail
- Place Of Origin
- ChongQing,CHINA
- Packaging
- 1 set in 1 wooden box
- Delivery
- 15 Days
Specifications
GDGK-303 High Voltage Switch Testing Equipment
Main Functions
1) Closing and opening time measurement of 12
channels
2) Max difference of closing or opening time measurement of three phases
3) Bounce time and frequency measurement of breaker closing
4) Circuit breaker closing and opening speed measurement
5) Travel-time, Coil current-time curve of circuit breaker operation measurement
6) Clearance of circuit breaker measurement
7) Variable DC circuit breaker operation power supply
8) Print test results by internal micro printers
Time measurement error <1%RDG+0.2ms
2) Speed measurement:
Range 2m/s resolution 0.01m/s max error<0.1m/s
Range 20m/s resolution 0.01m/s max error<0.2m/s
3) Travel measurement:
Range 250.0mm resolution 1mm max error 1mm
4) DC Power out: DC30V~250V/10A (instantaneous)
5)9 Travel sensors configuration: grating and angle
6) Test standard: IEC62271
7) LCD: 128*64
8) Power supply: AC220V±10% 50Hz/60Hz
9) Temperature: 0~50°C humidity: <90%
10) Size: 400mm*250mm*200mm
11) Weight: 7kg
Why Choose Us:
- Always Customer First.
- Professional Testing Equipment Supplier,with 5 years experience in this field.
- Exllent after-sale service and Always Competitive Price.
- English operating interface.
- Wtih In-house quality control.All the Equipments will be tested before leaving factory.
- All the Equipment has one year warranty.
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Africa,Europe,Middle East,Americas,Asia
- Founded Year:2009
- Address:NanPing West RD.,NanAn District
- Contact:Rita Lee
