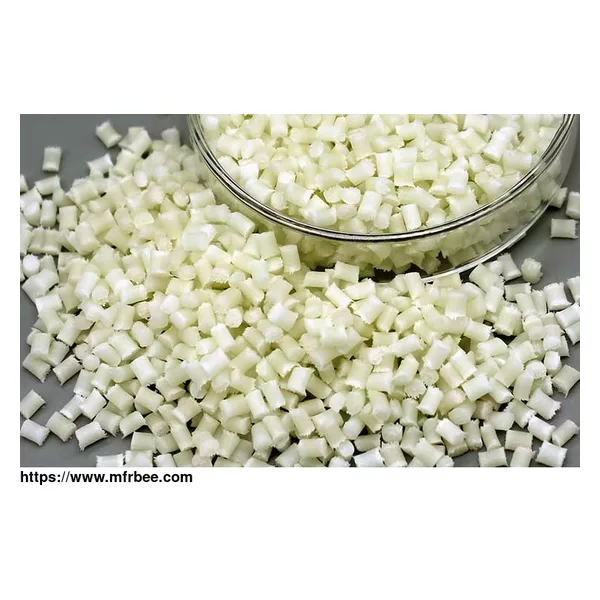

PA6 FR is a PA6 with 30% glass-fibers and flame retardant free of halogens.
Typical Application of PA6 GF30 halogen-free FR (A1015F)
PA 6 GF30 flame retardant free of halogens has achieved full coverage from electronic&electrical fields to the industrial, commodity consumer market, and even the automotive industry. Such as
MCB panel (v0), power tool housing (HB), small household appliance accessories for bread machine housing and vacuum cleaner accessories (HB), and daily necessities structural parts-office chair
legs (HB) and exhaust duct (HB), etc.
Other Details of PA6 GF30 halogen-free FR (A1015F)
Physical Property
Ash (15.0% 1 ISO3451/1)
Conditioned 600°C*2h
Density (1250Kg/m3 1 ISO1183)
Conditioned 23°C
Shrinkage Parallel Flow (0.5-0.7 % 1 ISO294-4)
Shrinkage Vertical Flow (0.7-1.1% I ISO294-4)
Mechanical Properties
Tensile strength (125.0MPa 1 ISO527)
Conditioned 5mm/ min
Tensile Strain at Break (2.5% I ISO527)
Conditioned 1.0J
Notched Impact Strength (125 0MPa I ISO527)
Conditioned 2mm/min
Flexural Strength (190MPa 1ISO178)
Conditioned 2mm/min
Flexural Modulus (5700 MPa I ISO178)
Conditioned 5mm/ min
Thermal Property
Melting Point (220°C I ISO11357)
Hot Deformation Temperature (175*C I ISO75)
Conditioned 1.8MPa
Flammability Class (HB 1UL94)
Conditioned mm
Injection Molding Conditions
Drying Temperature 130°C
Drying Time 3h
Cylinder Temperature 240-260°C
Nozzle Temperature 240-260*C
Tooling Temperature 80*C
* Molding conditions are just for reference, please make an adjustment based on the actual situation!
