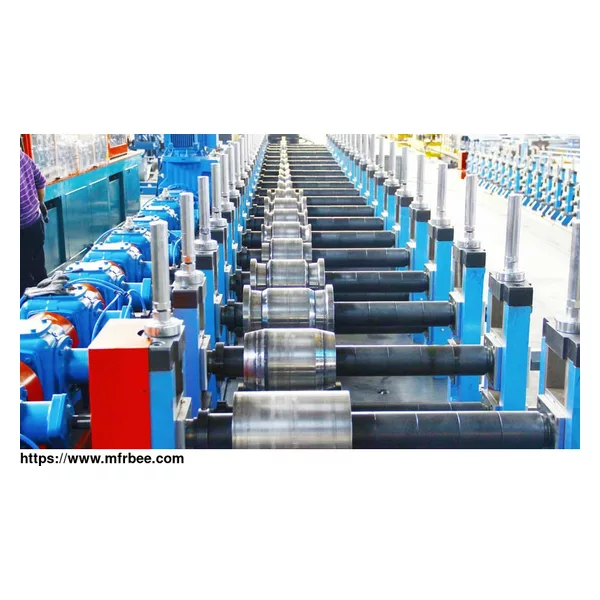

CABLE TRAY ROLL FORMING MACHINE

FOB Price: USD $10,000.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Well designed by engineers at Hangzhou Roll Forming Technology, this series of cable punching machines can produce rolling cable tray and caps from 50-350mm. Our perforated cable tray roll forming china machine can conduct fast and easy operations between different sizes on the cable tray production line. Adopting cantilever shafts forming structure, the forming tooling of our cable tray bending machine is assembled on cantilever shafts. When you need to change sizes, you will just need to change spaces between left/right shafts without changing any spacers station by station. Moreover, both manual and motor adjusting modes are available for choice and combined cutting blades are also adopted into the design of our cable tray roll making machinery.

Hangzhou Roll Forming Technology is one of professional China cable tray roll forming machine manufacturers. We can provide you with high-quality perforated cable tray roll forming machine china. You can check more information below. Welcome to consult us for China cable tray machine price.

Suitable Coil Sheet Material for Cable Tray Roll Forming

Suitable material Galvanized Steel

Barrier Thickness 0.5-0.7/0.8-1.2 (mm)

Yield Strength 230-300 (MPa)

Width as profile requests

Production Line Components and Parameters of Cable Tray Roll Forming Machine

1. Decoiler: 3t/5t/8t/10t

2. leveling device

3. Holes punching device

4. Servo Feeding Device

5. underground pit/ overground accumulating unit optional

6. feeding and guiding device

7. Roll forming system 20/min; line production speed: About 11m/min

8. cutting to length device

9. Micro-step enlargement device

10. logo printer

11. Output Automatic supporter

12. Electric control system MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )

Working Flow Of Galvanized Cable Tray Roll Forming Machine

Decoiler & leveling unit - Steel sheet sensor - Punching system - Ervo feeding system - Underground pit / overground accumulator - Feeding table and guiding unit - Roll forming system - Cutting to length - Micro-step enlargement device

Specification Of Cable Tray Roll Forming Machine

Machine Condition Fully New, A-Grade quality

Panel Shape As profile drawing and customer’s requirements

Operator needed 1-2 people

Power Supply 220V/380V/415V/460V, 50/60Hz, 3P (as requests)

Equipment Weight About 25t

Dimension (L*W*H) about 32*3*2m

LOADING SIZE Normally need 2 x 40' (+1x20’) container.

Equipment Color Normally Blue/White, or as requests;

Place of Origin Zhejiang, China (Mainland)

Packing Standard and careful export packing

Now the price of roll forming equipment for sale is reasonable, if you are interested, please leave us a message.
