API PIPE MILL FOR OIL TRANSPORTATION

FOB Price: USD $10,000.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

API Pipe Mill For Oil Transportation is a series of machines that build longitudinal weld seam tubes and pipes with steel strips of certain width.

As a professional manufacturer of Mill API, we can provide you with high-quality Mill API. You can check the details of our API Mill below. If you have any questions, welcome to consult.

Technical Parameters of Mill API

Model Round pipe Square pipe Thickness Speed

mm mm mm m/min

RFT-114 Ф48-Ф114 40x40-90x90 1.5-4.5 70

RFT-140 Ф60-Ф140 50x50-110x110 2.0-5.0 60

RFT-165 Ф76-Ф165 60x60-130x130 2.0-6.0 55

RFT-219 Ф89-Ф219 70x70-170x170 2.0-8.0 50

RFT-273 Ф114-Ф273 90x90-210x210 3.0-10.0 45

RFT-325 Ф140-Ф325 110x110-250x250 4.0-12.7 40

RFT-377 Ф165-Ф377 130x130-280x280 4.0-14.0 35

RFT-406 Ф219-Ф406 170x170-330x330 6.0-16.0 30

RFT-508 Ф273-Ф508 210x210-400x400 6.0-18.0 25

RFT-660 Ф325-Ф660 250x250-500x500 6.0-20.0 20

RFT-720 Ф355-Ф720 300x300-600x600 6.0-22.0 20

Remarks Towards Mill API

1.Operator: 6-8 people (as size requests)

2.Casing tube, Oil pipe, API 5CTLine pipe, Oil pipe, API 5L

3.TRANSFERRING LOW PRESSURE LIQUID / OIL AND GAS

4.Oil tube is used for extracting oil or gas from wells

5.Casing tube is used in the wall of well

6.Line tube is used in the transportation of water, gas, and oil as well

7.Steel grade character: A,B,X42,X46,X52,X56,X60,X65....

Main Equipment Components of Mill API

Decoiler

Hoop cage or Horizontal Accumulator

Main Machine

Forming Machine

Roller System of Forming

Seam Guide

High-Frequency Induction Welding Machine

Roller System for Moving

Burr Removing Frame (Inside and outside Burr)

Water Cooling System

Sizing Machine

Roller System of Leveling

Speed Testing Wheel

Turkish Frame

Auto Flying Saw Controlled by Computer

Run out table

Electric Control Equipment

High-Frequency Welding Machine

Applications of API Pipe Mill For Oil Transportation

API pipe is widely used for a variety of pressure pipelines, especially for Petroleum, Natural gas, City gas, Pipe network, Chemical industry, Electricity, Steel truss, Water, and Gas pipeline.

Specifications of Mill API

Machine Condition Fully New, A-Grade quality

Size As requests

Power Supply 220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)

Equipment Weight About 30ton-300ton

Dimension 40m–400m (length) x 3.8m-40m (width)

LOADING SIZE Normally need 4-30 x 40' containers

Equipment Color normally Blue/Green/White, or as requests

Place of Origin Zhejiang, China (Mainland)

Packing Standard and careful export packing

If you want to know more kinds of roll forming machinery, please visit our website.

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa
Founded Year:2003
Address:
Contact:hzrollforming .com

api pipe mill for oil transportation

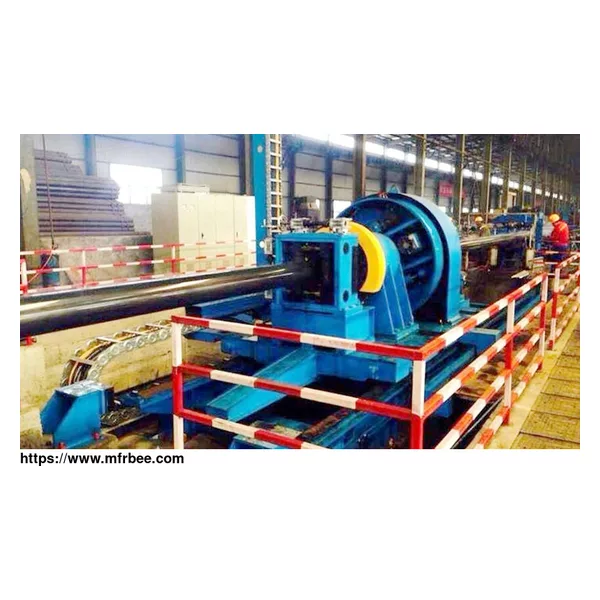

more images of API PIPE MILL FOR OIL TRANSPORTATION
