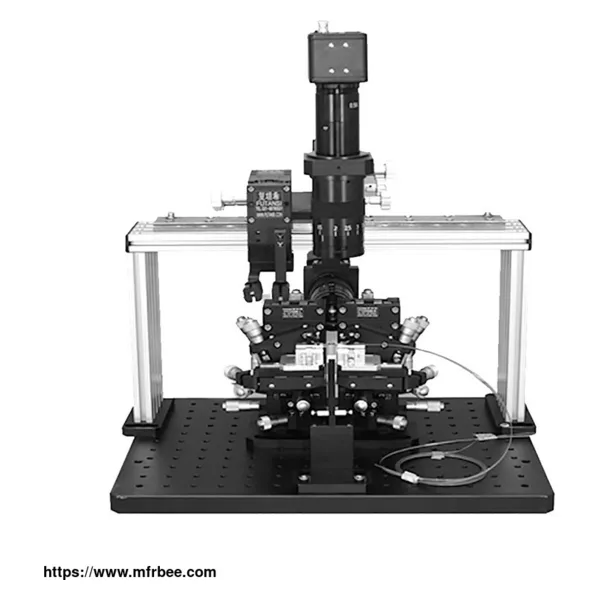

PLC automatic alignment equipment With CCD Vision Optical Alignment
Product Quick Detail
- FOB Price
- USD $50,000.00 / Piece
- Place Of Origin
- china(mainland)
- Minimum Order
- 1
- Packaging
- 1 set each carton
- Delivery
- 15 Days
Specifications
PLC automatic alignment equipment
ThisPLC automatic alignment equipmentreached top level, has silicon optical wave coupling, AWG,WDM,optical slitter,alignment device, special fiber and related optical coupling.
FEATURES AT A GLANCE
HIGH STEADY
DESIGNED FOR WDM
APPLY TO CWDM
HIGH ACCURACY
EASY TO OPERATE
MODULAR CONSTRUCTION
EASY TO MAINTENANCE
FAST ALIGNMENT SPEED
UV LED LIGHT SOURCE
alignment equipment
PLC automatic alignment equipment
Six axis Stage
:22
PRODUCT SPECIFICATIONS
| 1 | Precise adjustment component | 6 axis stage-input | 6 axis stage-output | ||
| 2 | Fixture device component | fiber array clamp-input | fiber array clamp-ouput | waveguide fixture | 45° reflector |
| 3 | observation system component | micro-zooming camera lens | CCD camera | color monitor | image converter |
| illumination LED light source | stage-left & right | stage-up & down | stage-front & back | ||
| 4 | UV curing system | UV LED spotlight source | UV light fixture stage | UV light clamp | other accessory |
| 5 | Base component | shockproof bread plate | Gantry bracket | ||
| 6 | other components | laser light source | luminous power | glow light source |
PRODUCT CONFIGURATION
6 axis stage
XYZ Axis
fiber fixture clamp
Successful Project
Motorized Stepper Motor Positioning
Positioning Linear Stage
Position Linear Slide
