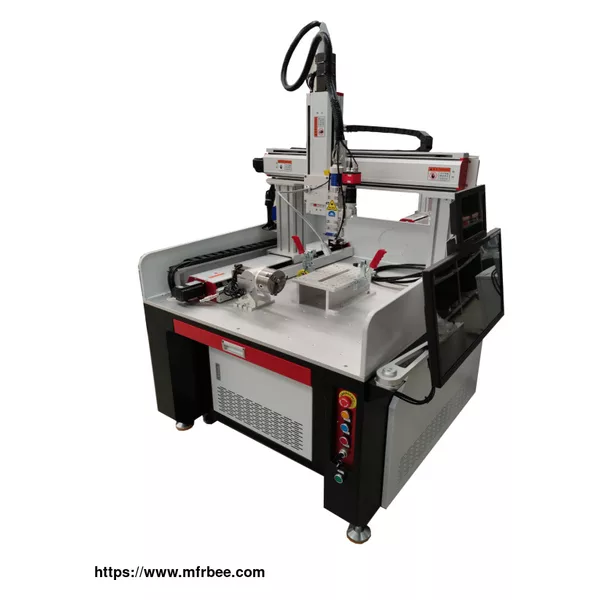

Table Laser Welding Machine
Product Quick Detail
- FOB Price
- USD $8,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
产品描述
光纤连续焊接机采用连续光纤激光器，通过对激光脉冲宽度、能量、重复频率等参数的数字控制，将工件熔化形成特定的熔池，从而实现对加工工件的激光焊接。广泛应用于手机电池外壳、电子元器件、移动通讯、精密设备、五金制品、汽车配件、眼镜、钟表、珠宝首饰、医疗器械、保温杯、酒壶、厨房等行业。
特征
1.最新一代光纤激光器，自主研发摆动/普通焊枪，具有安全感应功能，焊缝宽度可调;
2.易于长距离焊接大型物体，难以到达的地方;
3.高强度细焊缝，无需抛光，无耗材，不变形;速度是常规氩弧焊等离子焊速度的
4.3-10倍;
5.功耗比传统工艺低10-20%，节省2-3人工成本;
6.操作简单，使用寿命长。
优势
1. 精确定位
光纤激光焊接机配有CCD摄像监控系统，观察方便，微焊时可以通过点精确定位。
2.均匀的焊点光纤激光焊接机的光斑能量分布均匀，具有焊接特性所需的最佳光斑。
3.适用于各种焊缝尖叫声光纤激光焊接机适用于各种复杂焊缝，各种设备的点焊，以及1mm以内的薄板焊缝。焊接速度快，深度大，变形小。
4. 批量和批量生产光纤激光焊接机可定制专用自动夹具，实现产品的批量生产。
5.W斜焊在焊接过程中，可实现摆动，可以调整光斑尺寸，并根据客户的需求增加自动送丝装置
技术参数
| 型 | TXT-HJ-T1000/1500/2000 |
| 平均输出功率 | 1000W/1500W/2000W |
| 激光波长 | 1064纳米 |
| 焦点 | 0.1-3.0毫米 |
| 激光焊接深度 | ≤5毫米取决于材料 |
| 红光点 | 0.2-3.0毫米 |
| 激光电源 | 380V/3相/50Hz/40A |
| 最大重量负载 | 200公斤 |
| 工作台运行距离 | 200 * 200毫米至1200 * 1200毫米 |
| 重复精度 | ±0.01毫米 |
| 位置精度 | ±0.02毫米 |
| 位置系统 | 红灯、CCD 和可选旋转 |
| X Y Z轴工作行程 | X轴300mm，Y轴200mm，Z轴150mm |
| 冷却 | 水冷 |
| 尺寸 | 1600 * 800 *1800毫米 |
| 机器重量 | 300公斤 |
