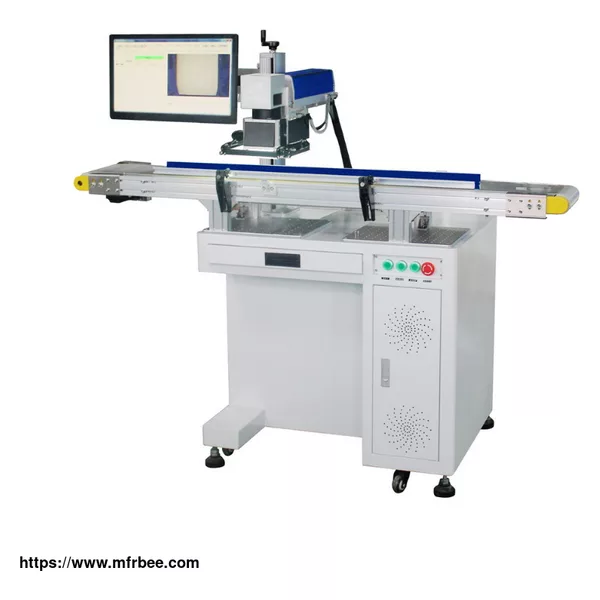

CCD Camera Visual Position Laser Marking Machine
Product Quick Detail
- FOB Price
- USD $10,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
产品描述
CCD相机视觉定位激光打标机针对批量不规则打标中夹具设计制造困难造成的送料困难、定位差、速度慢等问题。CCD摄像机标记是通过使用外部摄像机实时捕获特征点来进行的。解决。该系统可以随意供应材料，准确定位和标记，大大提高了标记效率。
它采用视觉定位原理。首先，为产品制定模板并保存为标准模板。产品在加工过程中被拍照，经过计算机比较和调整位置后，可以准确地加工产品。加工产品的形状可识别为圆形、方形和不规则;该工艺特别适用于小型产品，可以省去定位托盘固定夹具的加工，大大节省了激光打标加工周期。
技术参数
| 型 |
TXT-DB-CCDF30/50 （光纤）
TXT-DB-CCDC30/50（二氧化碳） TXT-DB-CCDU5/10 （紫外线） |
| 激光类型 | 紫外线/F比伯/二氧化碳 |
| 激光波长 | 355毫米/1064毫米/10640毫米 |
| 打标速度 | 0-8000毫米/秒 |
| 标记区域 | 110毫米*110毫米/130毫米*130毫米（可选） |
| 控制板 | BJJCZ |
| 控制软件 | 埃兹卡德 |
| 振镜头 | 中加尔沃 |
| F-θ透镜 | 100毫米-400毫米可选 |
| C阿美拉系统 | 单CCD/双CCD/同轴CCD摄像机定位系统 |
| 定位精度 | ±0.01毫米 |
| 最小线宽 | 0.01毫米 |
| 功耗 | ≤800瓦 |
| 冷却模式 | 风冷 |
| 支持的格式 | DWG，DFX，BMP，JPG，PNG，TIF，PCX，TAG，GIF，PLT等 |
| 支持的条形码 | 代码39， EAN， 代码128， 数据矩阵， PDF417 等 |
| 电压 | 110V/220V 可选 |
