Explosion Proof Junction Box
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Products Show for Explosion Proof Junction Box
Small and large size flameproof junction box or terminal box to manage the cables
in concentrated enclosed housing in hazardous areas.
Explosion proof junction box, also called explosion proof enclosure, flameproof junction box, explosion proof boxes, explosion proof electrical boxes, ex proof junction box, flame proof enclosure,
atex approved junction box, ex d junction box, atex junction box zone 1, class 1 div 1 junction box, class 1 div 2 junction box, atex terminal box, explosion proof terminal box, ex terminal boxes,
ex de junction box, explosion proof motor junction box, grp terminal box, atex junction box zone 2, gas line junction box, zone 2 junction box, exd box, atex junction box zone 1, exd junction box,
explosion proof outlet box,explosion proof conduit outlet box, dust proof electrical outlets, 11b junction box, box explosion proof, ex e terminals, stainless steel junction box.
Enclosed with electrical terminal blocks for easy connection and cabling, Explosion proof junction box are designed with metal flame proof housing, stainless steel or glass fiber reinforce
polyester increased safety housing to prevent electrical parts from physical damaging and constrain the explosion from entering to hazardous atmosphere. Ex proof junction box not only makes it
possible for the whole cable wiring process especially for some complicated project containing a huge numbers of feeders but also play a very crucial role in fault diagnosis and frequency
improvement of short circuit. SUREALL explosion proof junction box can be only built with terminal blocks for hazard division class 1 div 1 and zone 1. Anyway, if you intend to put big current
electrical components such circuit breaker, photocell, certain device in explosion proof junction box, please go the page of explosion proof panel to ask professional support from our engineers.
Above all, as a rigorous and professional explosion proof junction box supplier, SUREALL takes high quality products as its own development concept. The following shows the different types of
flameproof junction box in our company. If you are interested in one of ex proof junction box, please contact us.
Category
Explosion Proof Junction Box
Explosion Proof Junction Box Flameproof Junction Box Exd SJB-IIB Series
C1D1, C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.32A
Type 4X, IP66
Built-in Terminal blocks
Explosion Proof Junction Box Flameproof Junction Box Exd SJB-IIC Series
C1D1, C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.32A
Type 4X, IP66
Built-in Terminal blocks
Explosion Proof Junction Box Class 1 Div 2 Ex e Junction Box SJB-A-e Series
C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.125A
Type 4X, IP66
Built-in Terminal blocks
Explosion Proof Junction Box Exd 11b Junction Box SJB-A-IIB Series
C1D1, C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.400A
Type 4X, IP66
Built-in Terminal blocks
Explosion Proof Junction Box Exd Junction Box SJB-A-IIC Series
C1D1, C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.250A
Type 4X, IP66
Built-in Terminal blocks
Explosion Proof Junction Box Glass Reinforced Plastic Ex e SJB-P Series
C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.125A
Type 4X, IP66
Built-in Terminal blocks

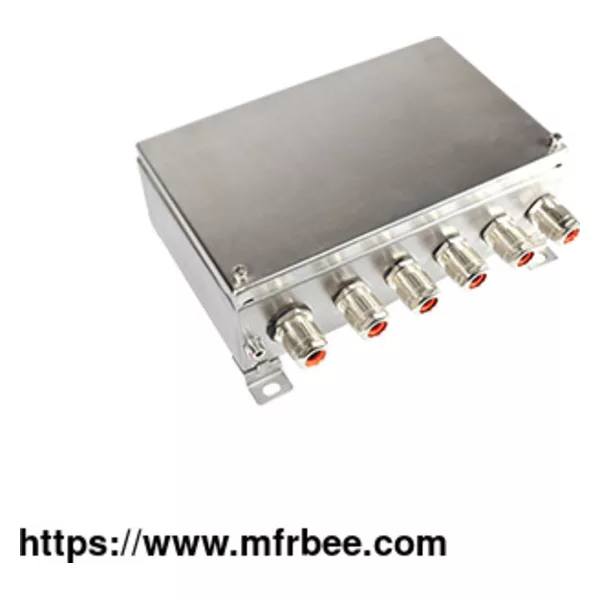

Explosion Proof Junction Box Stainless Steel Junction Box Ex e SJB-S Series
C1D2, C2D1, C2D2
Zone 1&2, Zone 21&22
Max.125A
Type 4X, IP66
Built-in Terminal blocks
Features
Explosion Proof Junction Box
Die cast Aluminum alloy flame proof Ex d housing for IIB/IIC
Glass reinforced plastic increased safety housing
Stainless steel 304/316 increase safety housing
Small size for low current and bigger size for high current
Customized brand and current for terminal blocks
Proper and safe designed internal space layout for wiring
Wide ambient temperature range from -40℃ - +55℃
IP66 ingress protection, NEMA 4X
Class 1 Div 1, Class 1 Div 2, Class 2 Division 1, Class 2 Division 1
Zone 1, Zone 2, Zone 21, Zone 22
Main Use
Explosion Proof Junction Box
Explosion proof junction box can be applied for many usages, in order to make you understand clearly, now we are listing the main usage directions from four aspects, function, hazard class
division, usage by application and alternative for brand-new models.
Function
From the filed bus cable to feeder cable, a large number and kinds of resistor and control units will be put among the electrical circuit, explosion proof junction is to connect one end of cable
with another end in a enclosed housing for well-organized branch wiring.
Hazard class division
You know there are different classifications and divisions for explosion proof junction box, hazard class division can be class 1 div 1 and class div 2, group A, B, C, D and group C, D, zone 1 and
zone 2, IIC and IIB, you can check the hazardous area classifications chart from other pages.
Explosion Proof Junction Box
Usage by application
Depends on the application field, explosion proof junction box can be used in upstream oil and gas plant, processing refinery and petrochemical plant, fuel related plant, chemical and mining plant
and anywhere there is flammable gas, vapor, mist and dust.
Alternative for brand-new model
As a big explosion proof box supplier, SUREALL explosion proof junction box can be the alternative junction box solution for ccae box, ccai box, cstb box, ejb box, ejb full form, gube box, sx7e
box, bxj box, each box, gua 4 box, gua number 7 box, gua fitting electrical, guat conduit body.
Explosion Proof Junction Box Main Use
What Is EJB Junction Box?
EJB junction means explosion proof junction box, also called explosion proof box, SUREALL put electrical terminal blocks whose rated current ranges from low ampere, normally lower than 32 ampere,
to middle and high ampere, normally more than 32 ampere in a solid constructed explosive protected junction box to worked as cable connection and integration center in hazardous location.
As for SJB-IIB, SJB-IIC series and SJB-A-IIB, SJB-A-IIC series, the solid constructed junction box are flame proof structure, it means the housing can withstand the internal explosion and prevent
the internal energy from igniting the outside of the housing to ensure the safety, but the size is different, SJB-IIB and SJB-IIC are small size only suitable for rated current which is lower than
32 ampere, SJB-A-IIB and SJB-A-IIC are big size suitable for rated current which is more than 32 ampere. Besides, the suitable gas group is different, SJB-IIB and SJB-A-IIB series can be used in
IIB gas group, Group C, D, instead, SJB-IIC and SJB-A-IIC series can be used in IIC gas group, Group A, B, C, D.
As for SJB-A-e, SJB-P, SJB-S series, the solid constructed junction box is increased safety factory sealed explosion proof structure with increase safety explosion proof built-in terminal blocks
whose material have limited temperature floating range and better insulating property. The only difference for them is the material, SJB-A-E-e is made of aluminum alloy, SJB-P is made of glass
reinforced plastic, SJB-S is made of stainless steel.
FAQs about Explosion Proof Junction Box
Q
What is Ex e junction box?
A
Ex e junction box, the whole name increased safety explosion proof junction box, is normally made of aluminum alloy (SJB-A-e series), glass reinforced plastic (SJB-P series) or stainless
steel(SJB-S series) housing with prior sealing for the joint between body and cover and sometimes equipped with increased safety components inside the housing.
Q
What is the difference between exd and exe junction box?
A
The explosion proof technology applied are different, exd explosion proof junction box(SJB-IIB, SJB-IIC, SJB-A-IIB, SJB-A-IIC series) is flame proof which explosion are allowed inside the
housing(the housing can withstand the explosion pressure) but no explosion will come out of the housing, ex e explosion proof junction box(SJB-A-e, SJB-P, SJB-S sereis) is increased safety which
explosion will not formed even inside the housing through better quality insulation material.
FAQs about Explosion Proof Junction Box
Q
What is the difference between terminal box and junction box?
A
Explosion proof terminal box are pre-designed with well-arranged layout for connection without extra space for future expansion, explosion proof junction box are designed with spare space for
connection change in the future after arranged the present existing circuits, normally terminal box is normally bigger than junction box.
Q
How close can an electrical junction box be to a gas line?
A
In order to make sure the safety, SUREALL SJB-A-IIB series explosion proof junction box are widely used in gas line but it should be install at least 3 feet (around 900mm) far from gas meter or any
kinds of ignition source such as explosion proof panel, explosion junction box, explosion proof switch and other devices energized by electricity.
Q
What is an explosion proof box?
A
Explosion proof box is a box installed electrical components probably produce electrical spark with protective explosion proof technology, such as flame proof, increased safety technology to
improve the overall safety level to be in hazardous location without hidden explosion potentials, you can check the article "What is an explosion proof junction box?"
As one of explosion proof lamp suppliers, we can offer sorts of explosion proof industrial led lighting for sale, anything you need, please leave us a message.
