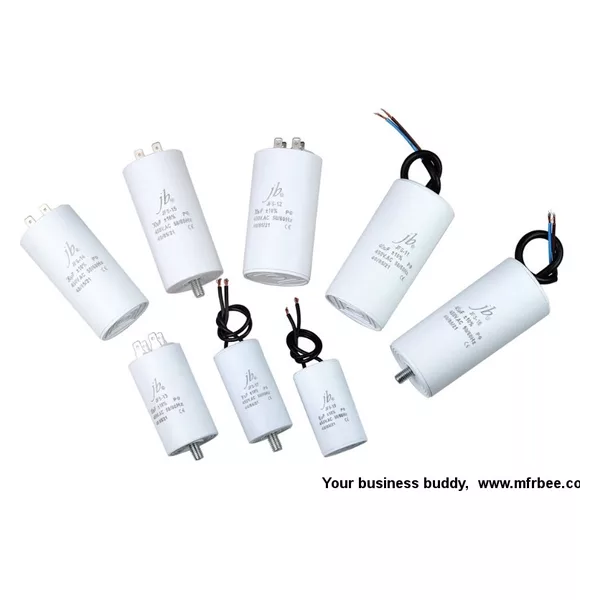

JFS - Motor Capacitor
Product Quick Detail
- Place Of Origin
- HongKong
- Packaging
- Bulk RoHS
- Delivery
- 15 Days
Specifications
jb Capacitors manufactures Motor Capacitor, also called Motor Run Capacitors. Motor Capacitor is famous for low dissipation factor, lower temperature rise and high reliability and durability. We sell high quality and quite competitive prices for Motor Capacitors, and totally we have 28 different series of motor capacitors. Following are Motor Capacitor features, specifications and drawing.
- Electrical apparatue use metalized film with precisely quality control.
- Low D.F. (dissipation factor), lower temperature rise.
- High I.R. (insulation resistance) small size.
- High safety &high reliability.
- Durability and characteristics of frequency, etc.
-
-
Operating Condition -40℃~+85℃
Capacitance Range 1uF~20uF(JFS-A~D、JFS-5~7、JFS-9) Capacitance Tolerance J(±5%)、K(±10%) Rated Voltage 250V 450V (AC) Withstand Voltage AC≥2UR 2S(lmax≤1.3 lnA) Dissipation Factor ≤0.003 1KHz(JFS-A~D、JFS-5~7、JFS-9) Insulation Resistance ≥3000S Operating Condition -40℃~+85℃
Capacitance Range 1uF~100uF(JFS-10~21) Capacitance Tolerance J(±5%)、K(±10%) Rated Voltage 250V 450V (AC) Withstand Voltage AC≥2UR 2S(lmax≤1.3 lnA) Dissipation Factor ≤0.004 1KHz(JFS-10~21) Insulation Resistance ≥3000S Operating Condition -40℃~+85℃
Capacitance Range 2uF~100uF(JFS-22~24) Capacitance Tolerance J(±5%) Rated Voltage 370V 450V (AC) Dissipation Factor ≤0.004 100Hz(JFS-22~24) Withstand Voltage Between Terminals 2Un, 2s Withstand Voltage Between Terminal And Case 2.2KV, 2s
