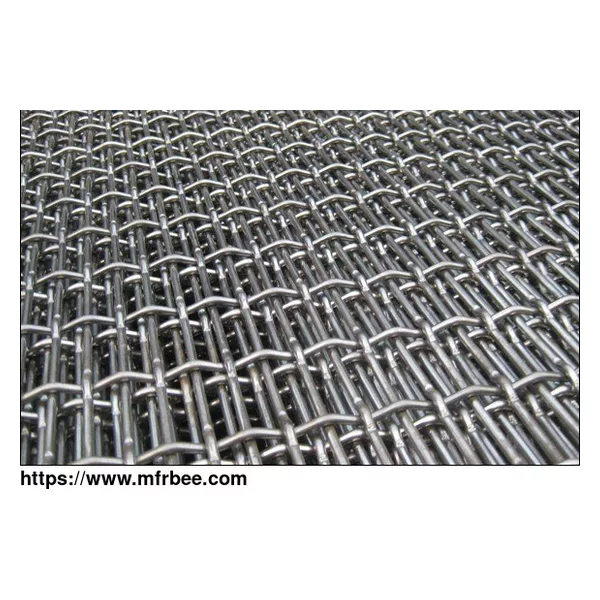

Crimped Wire Screens
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Atlas crimped screen is renowned for extremely high resistance to abrasion. Close checks on raw materials, production processes and constant quality control at all stages of manufacture guarantee a top quality finished product.
Four typical Crimped Mesh Patterns:
Flat Top
The top or working surface of the screen is smooth, all the crimping is on the underside, asssuring a more even weave. Materials are free to move over the screen.
Double Crimp
Evenly crimped in warp and weft, providing a rigid construction. The wires are undercrimped and sprung together thus giving a mesh which will not chatter at the intersections.
Lock Crimp
A variation of the double crimp with an additional crimp to give a firmly locked mesh. Widely used for vibratory screen cloths.
Corrugated Crimp
Extra crimps in war and weft with the wires seated in every third or fifth crimp. Gives a rigid mesh even when the aperture is large in relation to the wire diameter.
We supply:
Crimped Mesh Screen, 2.5mm Wire, Rectangular Opening
Woven of pre-crimp wire:
| Opening (mm x mm) | Wire Dia (MM) | Size (m x m) | Type |
| 13 x 6 | 2.5 | 1.5 x 1.5 | Crimped |
| 7 x 3 | 2.5 | 1.5 x 1.5 | Crimped |
| 3 x 13 | 2.5 | 1.5 x 1.5 | Crimped |
| 7 x 3 | 2.5 | 1.5 x 1.5 | Crimped |
| 2 x 5 | 2.5 | 1.5 x 1.5 | Crimped |
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Africa,Americas,Emerging Markets,Europe,European Union,Middle East,Oceania
- Founded Year:2012
- Address:105 New-China Street, Xianghe District, Dezhou, Shandong, China
- Contact:guo wei
