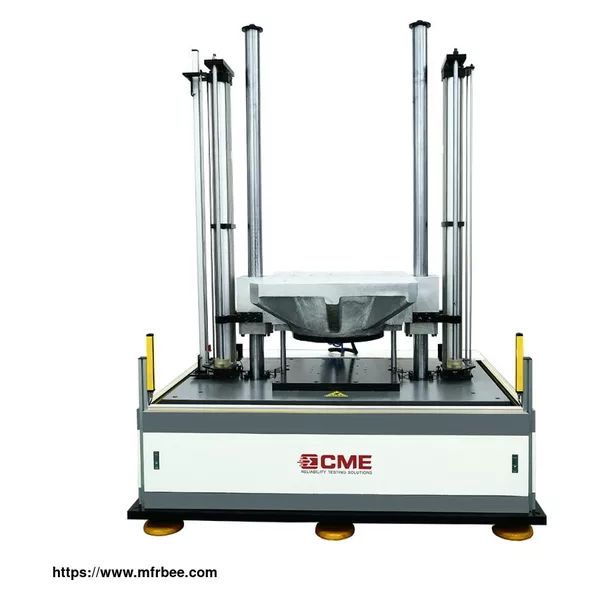

KRD10 Hydraulic Vertical Shock Test System

KRD10 series is a full-automatic hydraulic lifting vertical shock testing machine, with the state-of-the-art design, high degree of automation, simple operation and convenient maintenance. Engineers adopt it to test and measure the shock resistance of products or packaging, simulate the shock environment in laboratory to assess the functional reliability and structural integrity in a real impact environment. KRD10 series hydraulic test machine can perform various types shock waveforms to realize shock energy that the product is subjected to in the actual environment, thereby improving the system or optimizing the structure of the product. This shock test equipment meets standards of MIL-STD-810F and IEC68-2-27. Contact us for the hydraulic testing machine price!

FEATURES OF KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM

CME is offering different types shock test equipment for mechanical shock testing:

Windows OS: full-automatic remote-control interface, the operator only needs to input simple values, integrated IPS-2000 shock control & measuring system can accurately execute the shock test

Multi-track Guide Posts: combined with good lubricity and noise free hydraulic balance lifting system to achieve stable shifting

Automatic Control of Lifting Height: with high accuracy and good repeatability

Adopts the High Strength and Hardness Cast Aluminum Table: which has high first-order resonance frequency, featured with low noise and no clutter

Inner Brake Mechanism:to avoid secondary rebound bumps and more stable positioning of the table

Shock Waveforms:half-sine waves, post-peak sawtooth waves, or square waves

Free-foundation: The shock testing machine comes with a high-performance buffer and vibration isolation device, just put it on the level floor, the installation is convenient

One-stop for Measurement & Analysis: various waveform tolerance bands for reference standards are built in the software, users just need to apply and start, customized test report will be generated after the test.

TECHNICAL SPECIFICATIONS OF KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM

TABLE OF KRD10 HYDRAULIC VERTICAL SHOCK TEST SYSTEM

The basic body of the shock tester table is KRD10 series hydraulic lifting vertical shock tester, which is a free-falling vertical shock tester with hydraulic lifting and hydraulic braking. It is composed of shock table body, hydraulic source, electrical control, etc.

The table platform includes: working table, two guide rods, frame, air spring support system, lifting cylinder, displacement sensor, damper, hydraulic locking mechanism, etc.

The shock table adopts hydraulic drive, lifting cylinder lifting, high-pressure oil brake positioning, free fall, high-pressure oil-liquid brake to prevent secondary impact. The structure schematic diagram and pictures are shown in following figure:

For more information about reliability test and drop tester, please feel free to contact us!
