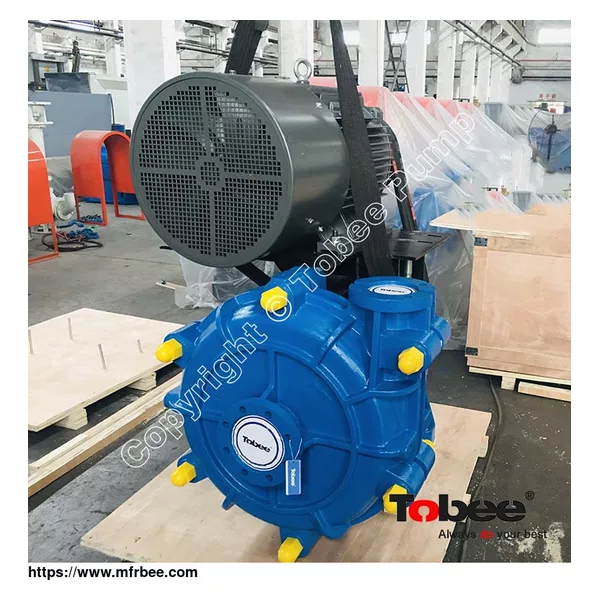

3/2D-HH High Head Slurry Pump is designed to produce high heads per stage at high pressures. Commonly used for long distance transport lines, the high head slurry pump lines can often satisfy application duties with a single pump where others require multiple pumps in series.
SPECIFICATIONS:
Size: 3" x 2"
Capacity: 68.4-136.8m3/h
Head: 25-87m Speed:850-1400rpm
NPSHr: 3-7.5m
Eff.: 47%
Power: Max. 60kw
Handling solids: 31mm
Materials: A05, A07, A12, A49, A51, A61 etc
Tobee® 3/2 D HH High Head Slurry Pump Design Features:
• High head, high pressure centrifugal end suction slurry pump design.
• Ductile iron fully lined casing provides durability, strength and long service life.
• Hyper wear resistance materials for longtime worklife.
• Multi-stage high pressure operation allowed.
• Heavy duty construction with through-bolt design provides ease of maintenance and results in less down time
• Large diameter, slow turning, high efficiency impellers result in maximum wear life and lower operating costs
• Large, open internal passages maximize wear life and lower operating costs
• Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
Tobee® 3x2 HH High Head Slurry Pumps Performance Parameters:
Model |
Max. Power
(kw) |
Materials | Clear Water Performance | Impeller | ||||||
Liner | Impeller |
Capacity Q
(m3/h) |
Head
(m) |
Speed
(rpm) |
Eff. η
(%) |
NPSH
(m) |
Vane No. |
Impeller
Dia. |
||
3/2D-HH | 60 | M | M | 68.4-136.8 | 25-87 | 850-1400 | 47 | 3-7.5 | 5 | 457 |
