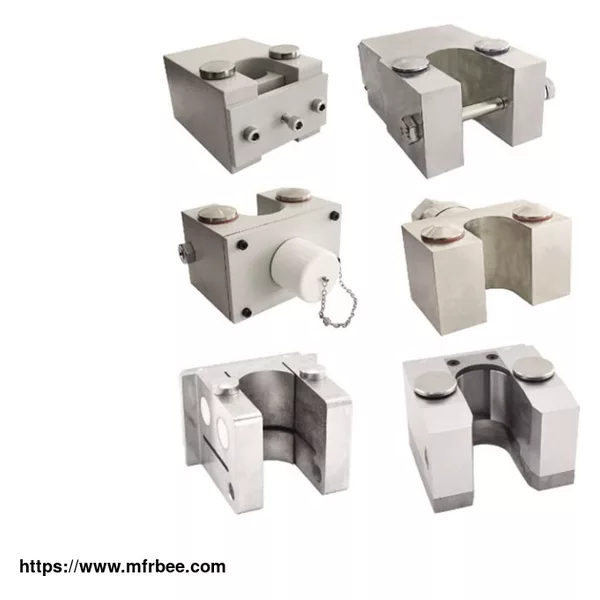

TJH-17 Oil Field Load Cell

Company: Anhui Tianguang Sensor Co.,Ltd
Country: China (Mainland)
Address: No. 118, Jiahe Road, High-Tech Zone,Bengbu,Anhui
Contact: Huang Jack

Oil sender sensor is suitable for data acquisition of oil field wellheads. It has the characteristics of convenient installation, good sealing, high comprehensive precision, anti-corrosion, moisture-proof, dust-proof and good dynamic performance. It has been used in many oil fields such as Daqing, Shengli, North China, Xinjiang, Liaohe, Changqing, etc., and has been widely praised.

Specifications of JTH-17 Oil FieldLoad Cell

Technical Parameter
Rated Load	100~300 kN
Comprehensive Precision	0.3% FS
Sensitivity	1.0~1.5 mV/V
Creep	±0.05% FS/30min
Zero Output	±1% FS
Temperature Effect On Zero	±0.05% FS/10℃
Temperature Effect On Output	±0.05% FS/10℃
Operating Temperature Range	-20~+65 ℃
Input Resistance	700~800 Ω
Output Resistance	700± 3 Ω
Insulation Resistance	＞5000 MΩ
Safe Load Limit	150% FS
Bridge Voltage	Reference 10V DC
Material	Alloy Steel
Load Cell Mode Of Connection	Input+: Red
Input-: Black
Output+: Green
Output-: White
