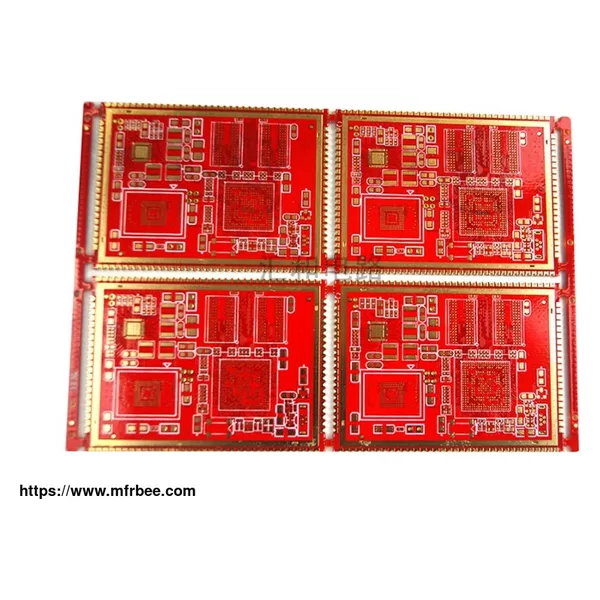

8 Layer ENIG Half Hole Custom PCB

FOB Price: USD $100.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Number of layers: 8

Surface finish: ENIG

Base material: FR4

Outer Layer W/S: 4/3mil

Inner layer W/S: 5/4mil

Thickness: 1.6mm

Min. hole diameter: 0.2mm

Special process: half hole

Advantages Of 8 Layer ENIG Half Hole Custom Made PCB

Own lamination process to convenient production for Multilayer PCB and shorten the lead time.

Jiangxi facility is environmental-friendly approved by the government .

Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.

Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.

Engineers with more than 15 years of experience

Customers located in more than 20 countries, the common choice of 500 high-end companies.

Perfect quality inspection system

Professional R&D team can make all kinds of special boards.

Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.

Establish an e-commerce system to reduce transaction costs and increase market response speed.

As one of custom circuit board manufacturers, we can offer kinds of custom made circuit boards for sale, and the cost of custom pcb is reasonable, if you have needs to buy custom pcb boards cheap, please contact us.

More types of pcb board, please visit our website.

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2017
Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
Contact:Huihe Circuits

8 layer enig half hole custom pcb
