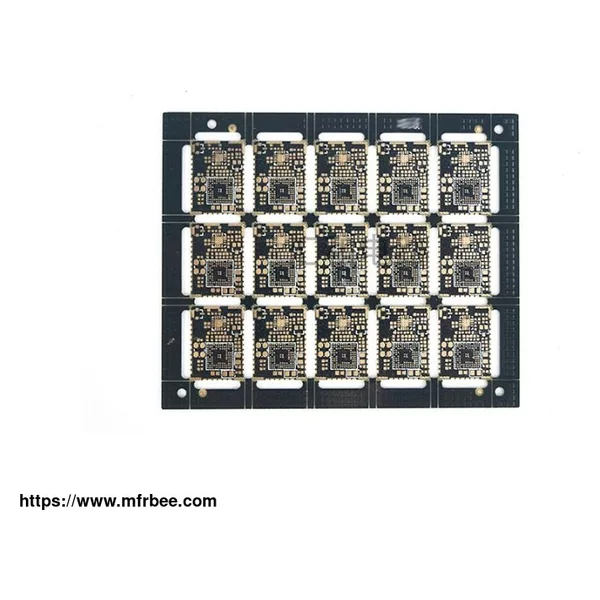

4 Layer ENIG Impedance Control Half Hole Fr4 PCB

FOB Price: USD $100.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Number of layers: 4

Surface finish: ENIG

Base material: FR4

Outer Layer W/S: 6/3.5mil

Inner layer W/S: 6/4mil

Thickness: 0.8mm

Min. hole diameter: 0.28mm

Special process: impedance control+half hole

Advantages Of 4 Layer ENIG Impedance Control Half Hole Fr4 PCB

Own lamination process to convenient production for Multilayer PCB and shorten the lead time.

Jiangxi facility is environmental-friendly approved by the government .

Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.

Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.

Engineers with more than 15 years of experience

Customers located in more than 20 countries, the common choice of 500 high-end companies.

Perfect quality inspection system

Professional R&D team can make all kinds of special boards.

Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.

Establish an e-commerce system to reduce transaction costs and increase market response speed.

As a pcb manufacturer, we can offer four layer pcb for sale, and the 4 layer pcb cost is reasonable, if you have needs to buy cheap 4 layer pcb, please leave us a message.

More different types of pcb board, please visit our website.

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2017
Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
Contact:Huihe Circuits
