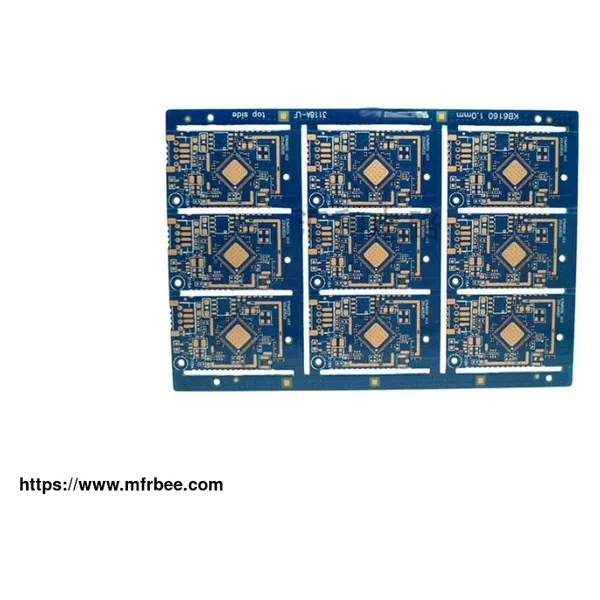

Half Hole & Through Hole Pcb

FOB Price: USD $100.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Through hole circuit board & half hole PCB, no copper burr residue or warpage in half hole, reduce connectors and save space, apply to Bluetooth module and Signal receiver products. HUIHE CIRCUITS PCB board with holes apply to Bluetooth module and Signal receiver products. Our PCB products have passed ISO9001/ISO13485/IATF16949/UL/RoHS/REACH certification.

Half Hole & Through Hole PCB List

2 Layer OSP Impedance Control Half Hole PCB China

2 Layer ENIG Half Hole PCB

4 Layer ENIG Impedance Control Half Hole PCB Electric Circuit Board

2 layer ENIG impedance control half hole PCB

8 layer ENIG half hole custom PCB

4 layer ENIG impedance control half hole fr4 PCB

4 layer ENIG impedance control half hole PCB

4 layer LF-HASL half hole PCB

Production Process Of Metallized Half-Hole PCB

For the front inversion, to prevent the quality of the product and the need to make corrections in the later process, the production process of this type of board is processed according to the following process: a drilling (drilling, gong groove-plate surface plating-external Optical imaging-pattern plating-co-drying-half-hole processing-film stripping, etching, tin stripping-other processes-shape

Main Points Of Metallized Half-Hole PCB Production

The specific metallized PCB half holes are processed in the following way: all metallized half-hole PCB holes must be drilled in the pattern after plating, and one hole at the intersection of the two ends of the half-hole should be drilled before etching.

The engineering department formulates the MI process according to the process

The metal half-hole is the second-drilled half-hole drilled during the first drilling (or gong), after the image is plated, and before the etching. It is necessary to consider whether the copper will be exposed when the gong groove is shaped, and move the drilled half-hole into the unit.

he right hole is drilled first, and then the board is turned over (or mirrored) and the left hole is drilled to reduce the pulling of the copper of the inner hole of the half hole by the drill, resulting in the lack of copper of the hole.

The size of the drill nozzle for drilling the half hole depends on the spacing of the contour lines.

Draw the solder mask film, use the gong space as a stop point and open the window to increase 4mil treatment.

The Designer's Suggestion When Designing The Circuit

Change the distance from the edge line to the hole center. The general design is to place the hole center on the edge line and move the control center down. For example, the diameter of the hole is 1.4mm, the distance between the two holes is 2.54mm, and the board edge The distance between the line is 0.33mm from the center of the through hole, and the thickness of the plate is 0.6mm. The angle between the tangent to the cut point of the wall and the track of the milling cutter was 90 degrees before, but this time it is about 60 degrees. Because the board edge line is at a certain distance from the center of the through hole, the cutting angle of the milling cutter is changed, and the board thickness is extremely small, so the copper in the hole is not easily pulled out. The simultaneous improvement of small batch pcb design and production can greatly improve the production yield of PCB half-hole boards.

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2017
Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
Contact:Huihe Circuits

half hole & through hole pcb
