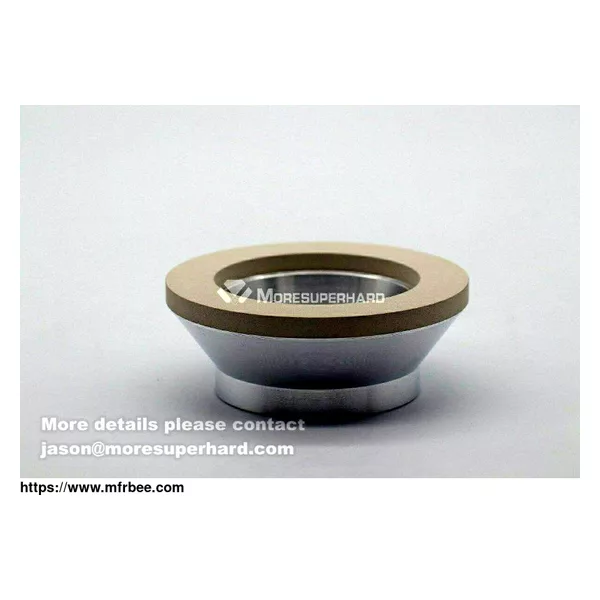

Type: | 11A2 |
Bond: | Vitrified |
Application: | Indexable inserts processing |
Specification: | Customized |
Brand Mark: | Moresuperhard |
Trade Terms: | FOB |
Packages: | Hard carton |
Delivery Time: | 15 workdays by express |
Especially for PCD/PCBN tools’ rough, medium, semi-finish and finish grinding
Precision control of geometric tolerance
Extremely long lifetime through high adhesion strength of the diamond grain
Good self-sharpening
Superior insert edge quality
High cutting ability with profile retention
Type | D(mm) | T(mm) | H(mm) | W(mm) | X(mm) |
11A2 | 100 | 40 | 32,40 | 3,5,10,20 | 10 |
125 | 40 | 32,40 | 3,5,10 | 10 | |
150 | 40 | 32,40 | 3,5,10,15,20 | 10 | |
Grit: 325/400, W40(500#), W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#), W3.5(4000#),6000#… |
Detailed Specifications can be customized!
Grain Size | Machining Type | Application |
W40(400-500#, D35) W28(600-700#, D20) | rough | Regrinding a blade edge profile and sharpening of much worn inserts |
W20(800-1000#, D20) | universal | Standard grain size also can get a high sharpening efficiency, good quality surfaces |
W10 (1500#, D15A)
W7(2000#, D15B) |
finish | Finishing grinding – getting a very good quality of machined surfaces |
W5 (3000#, D7)
W3.5 (4000#, D3) |
super finish | Super finish grinding – getting a brilliant quality of machined surfaces |
–Precision control of geometric tolerance
–Extremely long lifetime through high adhesion strength of the diamond grain
–Good self-sharpening
–Superior insert edge quality
–High cutting ability with profile retention
