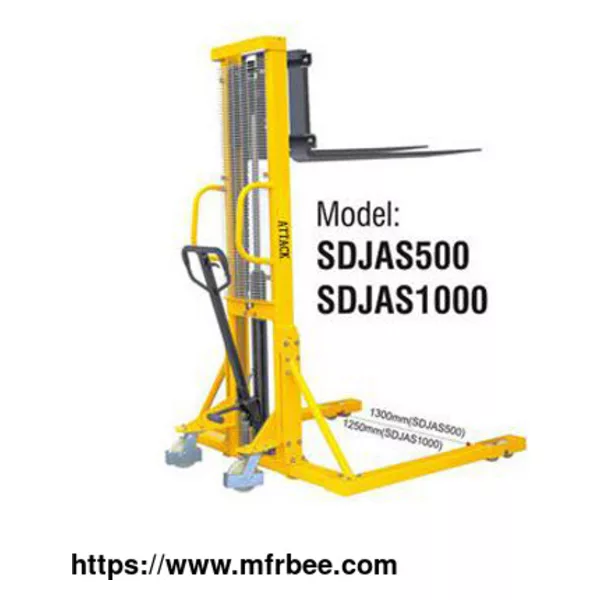

Manual Stacker Sdjas500-sdjas1000

We are professional Manual Stacker SDJAS500-SDJAS1000 supplier and factory in China.We can produce the product according to your requirements.

Advantages

· Robust Steel profile construction.

· An economical lift to handle tasks from transporting dies and moulds skids and pallets.

· Sturdy and compact enough to fit through standard doors and to operate in congested areas.

· Precision engineered for smooth performance and exceptional durability.

· Lifting function operated by foot and hand controls.

Manual Stacker SDJAS500-SDJAS1000 Specifications

Sand Washing BOP Stack

Size:3\"

PN: 3000PSI-15000PSI

Type:Manual, Hydraulic

Ends:Top Thread, Bottom Flange

Manual Stacker SDJAS500-SDJAS1000 Parameters

Model SDJAS500 SDJAS1000

Load capacity/rated load Q(kg) 500 1000

Load centre distance c(mm) 400/500 400/500

Fork height,lowered h13(mm) 70 70

Height, mast lowered h1(mm) 2000 2050

Max. lift height h3(mm) 1600 1600

Height, mast extended h4(mm) 2100 2155

Overall length l1(mm) 1340/1600 1300/1560

Overall width b1(mm) 1500 1450

Fork dimensions s/e/l(mm) 48/100/800(1060) 30/100/800(1060)

Distance between fork-arms b5(mm) 745 950

Round clearance, laden,below mast m1(mm) 25 25

Aisle width for pallets 1000×1200 crossways Ast(mm) 1975 1975

Aisle width for pallets 800×1200 lengthways Ast(mm) 1915 1915

Turning radius Wa(mm) 1200 1200

Lift speed,laden/unladen mm/s 25 25

Lowering speed,laden/unladen mm/s Manual control

Service weight kg 217 336

We can offer kinds of manual pallet stacker for sale, if you are interested, please leave us a message.

More types of multi lift fork trucks, please visit our website.
