Overview of Round Tube Laser Cutting Machine
Product Quick Detail
- FOB Price
- USD $300,000.00 / Piece
- Place Of Origin
- Wuhan
- Minimum Order
- 1
- Packaging
- 1. Whole film packaging machine; 2. Anti-collision package edge; 3. Fumigation-free plywood wooden box
- Delivery
- 30-45 days
Specifications
With the rapid development of laser technology, round tube laser cutting machine has become the preferred equipment for the pipe processing industry. Without mechanical extrusion, running drill,
and other problems, the round tube processing machine has an excellent processing effect-high accuracy, energy saving, no pollution, and no burr.
Fresh Laser Technology
With the advantages of high efficiency and high precision, Golden Laser round tube laser cutting machine P120 is gradually replacing traditional sawing machines, wire cutting machines, and punching
machines, to become a main tube processing equipment, which greatly saves laser tube cutting machine cost.
Automated Processing Mode
One-button operation, you can put a batch of round tubes into the storage rack, and the equipment can automatically load, cut, and receive, thereby saving labor. It can easily realize mass
production by cnc pipe cutting machine and solve various processing shortcomings and difficulties such as low efficiency of traditional pipe cutting, roughness with burrs, deformation and high cost
of consumables.
Economical Advantage
Less labor, safer and more environmental friendly. Meanwhile, the processing efficiency is higher several times than other machines, and the processing quality is better, which brings more benefits
and saves laser tube cutting machine cost.
Simplified Technological Process
The three technological processes of pipe blanking, hole opening and bevel cutting can be completed in one process, which can save time.
Efficient And High Quality
The cutting speed of cnc pipe cutting machine is extremely high, and the cutting time of the pipe is less than 1 second, which is 3-5 times less than sawing machine. The gap is small, and the
section of the pipe after cutting is neat, smooth and burr-free.
Simple Operation
By using cnc pipe cutting machine, you only need to import the cutting graphics and process library parameters, and then turn on the automatic processing mode without human intervention.
Application Of Round Tube Laser Cutting Machine1
Elbow connector industry:
With simple operation mode, a round tube laser cutting machine of CNC profile cutting is suitable for batch production and processing of multiple types of elbow connectors.
Application Of Round Tube Laser Cutting Machine2
Metal sanitary ware industry:
The metal tube laser cutting machine has no damage to the surface of the tube, and the automatic slag removal device can ensure that the inner wall of the pipe is clean. This can meet the
high-quality requirements of high-end bathroom products. Besides, a metal tube laser cutting machine is capable of completing any shape of plate cutting, which shortens the preparation time cycle
and is easy to complete continuous processing.
Application Of Round Tube Laser Cutting Machine3
Metal stroller industry:
The bevel cutting can meet the processing requirements of the splicing end between the metal stroller tube workpiece. Metal tube laser cutting machine can perform ultra-fine cutting because of the
extremely small focused spot and small heat-affected zone of processing. It is favored by many manufacturers.
Application Of Round Tube Laser Cutting Machine4
Motorcycle parts industry:
Highly automated production methods, so the equipment is also integrated into the processing automobile production line. The motorcycle plate frame is welded from the left and right side plates,
and the material is 1.4mm 08AL thin steel plate. The process sequence currently used is dropped stock, drawing, slicing a punch, trimming a punch, rolling an edge a flip hole. If cnc laser tube
cutter technology is used, it can replace the process of the material drop and can combine cutting edge punching and trimming edge punching into one process. In addition, the front and rear gear
mudguard, fuel tank, chain box, left and right cover and other parts can be trimmed by cnc laser tube cutter technology after the drop and stretch molding.
Application Of Round Tube Laser Cutting Machine5
Metal door and staircase industry:
Compared with traditional processing methods, P120 round tube laser cutting machine has the advantages of low cost tube laser, hihger processing efficiency, and higher profit. Processed by cnc
laser tube cutter technology and breaking the stereotype of metal furniture, it is coming into people’s lives in various guises.
Technical Data of Round Tube Laser Cutting Machine
Model name P120
Maximum processing length 6000mm
Tube diameter range 20-120mm
Type of tube Round tube
Laser source IPG/ nLIGHT/ Raycus
Laser power 500W-2000W
X Y axis maximum acceleration 0.8g
Rotational speed 90r/min
Tail length ≤40mm
Automatic deslag function Standard
Auto feeder maximum weight and size 800mm*400mm*600mm; 600kg
Laser Cutting Metals And Laser Powers
Material 1000W 1500W 2000W 2500W 3000W 4000W 6000W
Carbon steel 6 10 12 14 16 20 25
Stainless steel 4 6 8 10 10 12 16
Galvanized steel 3 5 6 8 8 10 12
Aluminum 3 4 5 6 6 10 16
Brass 2 3 4 5 5 8 10
Copper 1 2 2 3 3 4 6
Highlights of Round Tube Laser Cutting Machine
Automatic Bundle Loader
Just put the batch of round pipes into the storage rack, without manually load, and the round tube laser cutting machine can complete the pipe loading. With a CNC laser tube cutter-computer and
intelligent control, the CNC laser pipe cutting machine can work in the predetermined cutting area to produce the desired pattern and processing effect by software. After the technician inputs, the
cnc tube cutting software master into the computer, the CNC pipe cutting machine cuts according to the set track, and the automatic receiving and feeding device receive and feeds the material
without the staff throughout the process.
Multiple Functions
CNC pipe cutting machine China has multiple cutting functions such as hole cutting, truncation, and bevel cutting to meet the processing needs of various industries.
Automatic Slag Removal
Designed for the pipe fitting industry, saving post-processing procedures. The metal tube laser cutting machine uses a high-energy laser beam to irradiate the workpiece to be processed so that the
temperature of the irradiated surface of the workpiece rises rapidly and is in a molten state, and then the auxiliary gas is used to blow off the molten slag.

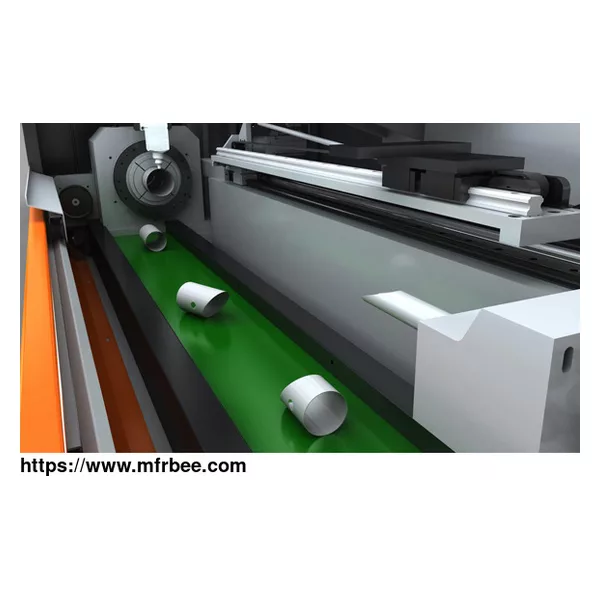

Crawler Collection
The processed workpiece after cnc profile cutting can be automatically collected and stored in an orderly manner through the crawler collection mechanism, which protects the surface quality of the
workpiece. Meanwhile, crawler collection saves time and labor, to increase efficiency.
If you want to buy the best chinese fiber laser machine, please contact us.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets
- Founded Year:2005
- Address:Golden Laser Industrial Park, Tianxing Road, Hengdian Street, Chuanlong Avenue, Huangpi District, Wuhan, Hubei, China
- Contact:goldenlaser .com
