Large tube laser cutting uses a focused high-power-density laser beam to irradiate the workpiece, so that the irradiated material quickly melts, vaporizes, ablates, or reaches the ignition point
while blowing away the molten material. And with the help of a high-speed airflow coaxial to the beam, thus realizing the cutting of the workpiece. Laser cutting is one of the thermal cutting
methods.
We have launched the heavy-duty tube large cutting machine, a large cutting machine, for processing super-long and super-heavy pipes. From automatic feeding to stable clamping, and finally, to
automatically receive the finished workpiece, the whole process can be fully automated. Save time and labor for you.
Professional Heavy Chucks
Compared with the general laser pipe cutting machine, the load-bearing weight of the chuck of a large laser cutter is increased to 500kg. The maximum load-bearing capacity of a single tube can
reach 1.8 tons. The most extended length supports automatic loading and cutting of 12 meters of pipes.
Friendly Operation
The equipped chain-type automatic loading and unloading system can support up to 12 meters of heavy-duty pipe loading and unloading. The number of single preparations can reach 6 to ensure the
continuity of the processing process and reduce equipment downtime. Only one person can efficiently complete the entire process.
Supports Multiple Types Of Pipes
Large cutting machine fully supports the cutting of round pipes, square pipes, rectangular pipes, elliptical pipes, channel steel, angle iron, I-beams, slats, profiles, special-shaped pipes, etc.,
and supports bevel processing.
CE Standard
The large cutting machine strictly adheres to the CE standard. The overall safety protection reaches the highest level without worrying about safety.
Application Of Heavy Duty Tube Laser Cutting Machine1
Construction machinery industry:
Many major load-bearing structures in construction machinery use ultra-long and ultra-thick channel steel, I-beams and other pipes. The traditional plasma cutting and flame cutting methods have low
processing efficiency and quality. But the china cnc fiber laser cutting machine can completely solve the problem of heavy pipe processing. In the future, cnc profile cutting will gradually replace
these methods. The material texture and style are maximized, and the building's proportions, texture, and space are rigorously expressed. With the delicate mind of laser process, all the
structural elements are fully expressed in the sectional plane.
Technical Data of Heavy Duty China Laser Tube Cutting Machine
Model name P35120
Workpiece length 0-12000mm
Tube diameter range 20-350mm
Type of tube Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc.
Single Tube Loading Weight 1.2t (1200kg)
Laser source IPG/nLIGHT/Raycus
Laser power 1500W-6000W
Positioning accuracy ±0.03mm
Rotational speed 70r/min
Support bevel cutting Yes
Automatic deslag function Option
Weld recognition Option
Auto feeder Standard chain loading and unloading system
Loading size 6* 12000mm
Laser Cutting Metals And Laser Powers
Material 1500W 2000W 2500W 3000W 4000W 6000W
Carbon steel 10 12 14 16 20 25
Stainless steel 6 8 10 10 12 16
Galvanized steel 5 6 8 8 10 12
Aluminum 4 5 6 6 10 16
Brass 3 4 5 5 8 10
Copper 2 2 3 3 4 6
Highlights of Heavy Duty Tube Laser Cutting Machine

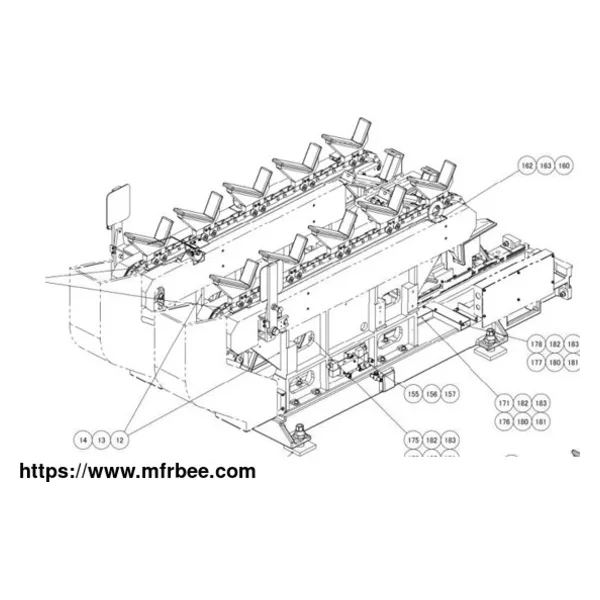

Chain Drive Loading and Unloading System
The loading and unloading adopt a chain drive model without manual intervention. Chain drive, choose the chain type and length and tensioning method according to the primary factors such as load,
speed, and working environment. The large laser cutter can ensure an accurate transmission ratio, transferring more power and acting on the shaft with less force and high transmission efficiency.
Intelligent Heavy-duty Chuck With Large Clamping Range
Large laser cutter adopts 3 heavy-duty pneumatic chucks with a maximum load of 500kg and a 20-350 mm clamping range. The clamping pressure of the pneumatic chuck supports digital visual adjustment,
which is precise and easy to control.
Servo Reducing Wheel Support System
Both the loading end and the unloading end are equipped with servo reduction wheel brackets to increase the load-bearing capacity. When cutting different types of pipes, input the pipe diameter
data through the cnc laser pipe cutting system to automatically adjust the wheel support angle. Servo motor control, positioning is more accurate.
No manual adjustment is required, and the operation is more straightforward and safer.
Modular Mechanical Structure Of Side Rail
The large laser cutter adopts the side rail design and chuck suspension type, accommodating larger pipes. The large cutting machine structure adopts the modular design, realizing segmental splicing
installation and convenient installation and disassembly. Even if the length of the whole machine exceeds 24 meters, there are no restrictions on transportation.
