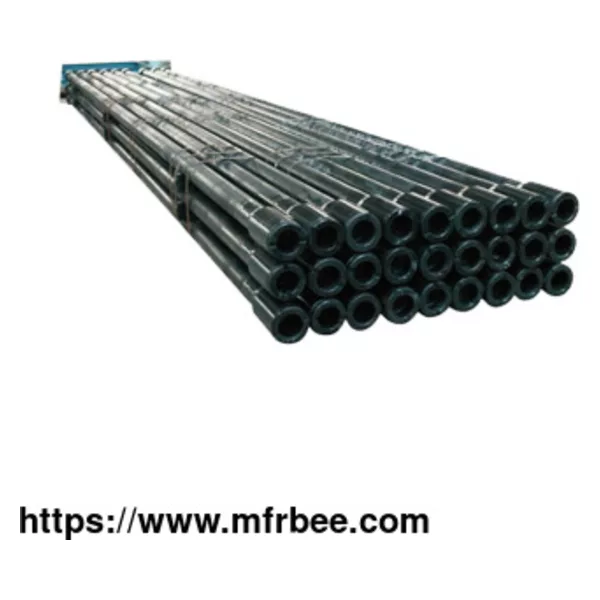

We can manufacture square drill rods and hexagonal drill rods as per requirements of customers. They are made of AISI 4142H-4145H forged or rolled alloy structural steel. Quenching plus tempering thermal treatment will be conducted over the whole length. Its Brinell hardness can reach 285-341 on the basis of such thermal treatment. Charpy impact energy: >or =54J. The formulated process can ensure that the misalignment of the hole reaches the standard wall thickness. Kelly bars are manufactured according to API-7-1 Spec.
Main Technical Specifications:
Product Description LAKE LT Overshot is one of the fishing tools which is fishing the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes. Because of the seals,the fluid can circulate with the high pump pressure after catching the fish. The top ...
Description: The Manual tongs are necessary tools applied to make up and break out pipes. By changing the lug jaws and latch steps the manual tongs can hold different size of tongs.They are designed and manufactured according to API 7K for well drilling equipment. The B type ...
Description: Kellys are manufactured with one of two drive configurations, square or hexagonal. Square kellys are furnished as forged or machined in the drive section. Hexagonal or fully machined square kellys are machined from full length quenched and tempered round bars. ...
Kelly is located in the top of the drill string, with square and hexagonal. In rotary drilling, when it is drilling, kelly connected with square bushing and rotary bushing, transfer the ground rotary torque to drill pipe and to drive the drill bit,bearing the weight of the drill ...
1. Main Technical Parameters: 2. Product Description: Air winches are powered by piston-type air motor. They have the advantages of compact structure, light weight, safe and easy to operate and they are use for general lifting, hauling and other works in mines, oil fields,on ...
1. Main Technical Parameters: 2. Product Description: This hydraulic winch is a lifting equipment driven and braked by hydraulic. It has the advantages of compact structure, light weight, convenient operation and stable lifting. It is used to lift heavy objects in mines, ports ...
1. Main Technical Parameters: 2. Product Description: Drilling hose (rotary hose) made according to API 7K Spec, applies for flexible hose connection between the top of oil drilling stand pipe and vertical moved swivel joint in well drilling, well cementing, work-over and ...
1. Main Technical Parameters: 2. Product Description: A rotary table is a mechanical device on a drilling rig that provides clockwise (as viewed from above) rotational force to the drill string to facilitate the process of drilling a borehole. 3. Features: (1) . Design and ...
1. Main Technical Parameters: 2. Product Description: The Sliding Block Spear is an internal fishing tool which is not only used for fishing of fallen objects perforated such as drill pipe, tubing, wash pipe, liner, packer, water distributor etc but also for reversing of stuck ...
