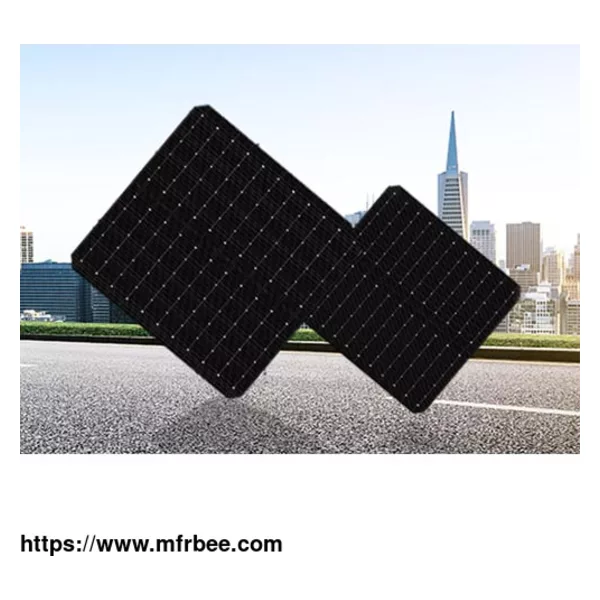

M10 Solar Cell

Place Of Origin: China

Minimum Order: 1

Packaging: N/A

Delivery: 20 Days

M10 Solar Cell

M10 cell, compared with the existing product span, equipment, process, auxiliary material maturity, production line upgrading difficulty, current product yield, and other factors, the M10 cell busbar P-type bifacial half-cut is the best size to achieve ultra-high power modules, more mature industrial ecology, fewer transportation problems.

Features Of The M10 Solar Cell

Higher Generation Process Of The Modules

The M10 cell mono perc half cut bifacial solar cell could provide up to 30% of the gain in the generation process of the modules, as for the half cut cell technology has a higher conversion efficiency than the full piece.

Lower Rated Operating Temperature

Compared with the full cell modules, the temperature of the mono perc cell module is 2-3 degrees lower, and the hot spot temperature is 10-20 degrees lower.

Lower Shadow Shielding Loss

Solar cell M10 10bb pv module has a lower shadow shielding loss.

Types Of The M10 Solar Cells For Sale

M10 Cell 182-91mm 10BB Mono P-type Bifacial Half Cell

Dimension: 182mm×182mm±1.5mm，Diagonal 247mm±0.5mm

Thickness (Cell): 180±18μm

Front (−): 10*0.06mm+-0.03mm main busbar（silver）136+-10mm asitbusbar, Blue anti-reflecting coating (silicon nitride)

Back (+): width of back electrode(silver) 1.4±0.3mm, finger grids(aluminum), dotted laser design

M10 Cell 182-91mm 11BB Mono P-type Bifacial Half Cell

Dimension 182mm×182mm±1.5mm

Thickness (Cell) 180±18μm

Front (−) 1.0mm/1.5mm wide soldering pads(silver) and 0.1mm bus bars(silver), SiOx/SiNx stack

layers (PID Free)

Back (+) 1.3mm wide soldering pads(silver), AlOx/SiNx stack layers (PERC structure)

Applications of the M10 Solar Cells

Sunrise M10 cell is mainly used for Aquaman series solar modules. It supports single-sided, double-sided, and all-black customization requirements. The size can be provided according to the installation scene, such as 108 cells, 120 cells, 144 cells, 156 cells, etc. After high-precision packaging The maximum module power is 595w.In distributed photovoltaic systems, medium and large ground power stations have mature applications. Compared with conventional modules, M10 solar cells are the optimal size to match the market.

If you want to know more details of half cut solar panel vs full cell, please visit our website.

Now the price of sunrise solar panel is affordable, if you have needs to buy mono solar panel, please contact us.
