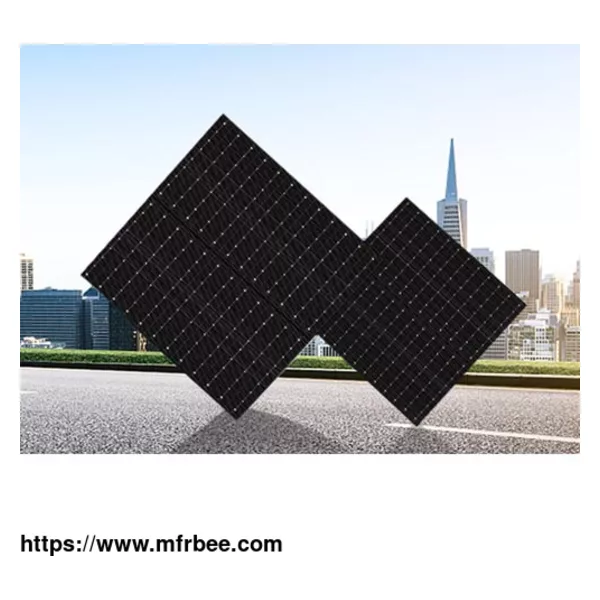

G12 Solar Cell

Place Of Origin: China

Minimum Order: 1

Packaging: N/A

Delivery: 20 Days

G12 large size silicon chip can improve the production efficiency from silicon chip to battery chip to module. At the same time, the production and operation costs can be reduced, especially for medium and large-scale distributed systems and ground power stations, which can effectively reduce the construction cost related to the number of modules. (For example:Support, cable, foundation block, transportation and installation cost, etc)

Features Of The G12 Solar Cells

Maximum Gain In The Process Of Sunrise Module Power Generation

The P-type double-sided half solar cells can contribute 30% of the maximum gain in the process of module power generation.

Higher Conversion Efficiency

Half solar cell module technology has higher conversion efficiency.

Lower Rated Operating Temperature

Solar half cell technology has a lower-rated operating temperature than the whole cell.

210-105mm 12BB Mono P Type Bifacial Half Cell

A P-type double-sided half cell can contribute 30% of the maximum gain in the process of module power generation. Half cell technology has higher conversion efficiency and lower-rated operating temperature than the whole cell. Compared with the whole-cell module, the half-cell module has 2-3 degrees lower temperature, 10-20 degrees lower hot spot temperature, and lower shadow loss.

Format 210mm*210mm±0.25mm

Thickness (Cell) 180±18μm

Front (−) 12*0.08±0.04mm mian busbar（silver）168±15 asit busbar, Blue anti-reflecting coating(silicon nitride)

Back (+) width of back electrode(silver) 2.2±0.4mm, finger grids(aluminum), dotted laser design

Applications of the G12 Solar Power Cells

Sunrise G12 cell is mainly used for Gaia series solar modules. With the high power and high conversion rate of the cell, the maximum power of the module after high-precision packaging is 700w. It supports 80, 120, 132 and other layout customizations. It is suitable for ground Medium and large projects in a deserted natural environment.

If you want to know more details of g1 solar cell size, please visit our website.
