HIGHWAY GUARDRAIL ROLL C PURLIN FORMING MACHINEE

FOB Price: USD $10,000.00 / Piece

Minimum Order: 1

Packaging: N/A

Delivery: 60 Days

Cold roll forming technology has been widely used for its energy saving, environmental protection and high efficiency. Highway guardrail machine products have also been widely used in many industries such as construction, bridges, vehicle manufacturing, container production, and machinery manufacturing, and have played a huge role.

Full line is controlled by PLC control system with touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..

Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency stop ensures the safe of the equipment and operator.

Machine side is equipped with the manual operation control panel for convenient worker to operate.

Technical Requirements

Operation area:25* 4.0 * 4.0(length *width* height)m

The direction of feeding: from left side to right side

Power: 380V, 50Hz, 3 parch

Hydraulic oil: # 46 hydraulic oil

Gear oil : # 18 hyperbolic gear oil

Motor Power:about 65KW

Material quality:MS,like Q195，Q235,50#steel,galvanized sheet

Main roll forming machine:

(The machine consists with drive motor, frame, forming roller and mould etc. The main forming machine drive adopted 45kw hard tooth face speedreducer with the frequency conversion velocity modulation, the encoder control brake.)

Gear box and universal coupling drive system.

Forming station: 12 stations

Material of the forming rollers: bearing steel GCr 15, with quench treatment.

Motor power: 45KW

Material of the roller shaft: 45# thermal refining , the diameter of the shaft is 90mm.

Hydraulic cutting device

Function; According to input work piece length parameter, uses encoder fixed-length, cut off the working piece after machine stop. Adopt hydraulic cutting type.

For more information about china cold roll forming machine, please feel free to contact us!

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2008
Address:No.9 Xiangdun Road, Huashi Town, Jiangyin City, Jiangsu Province
Contact:Bosj com

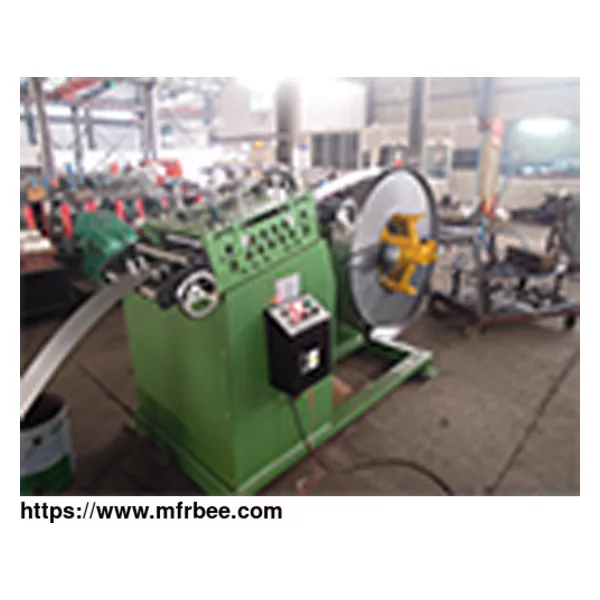

HIGHWAY GUARDRAIL ROLL C PURLIN FORMING MACHINEE
