Tobee®Mission Sandmaster Pumps
Mission centrifugal Sandmaster pumps to suit for all kinds of drilling sand pump application. Bare shaft pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.
The model 10x8x14 and 8x6x14 centrifugal sandmaster pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity
drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11

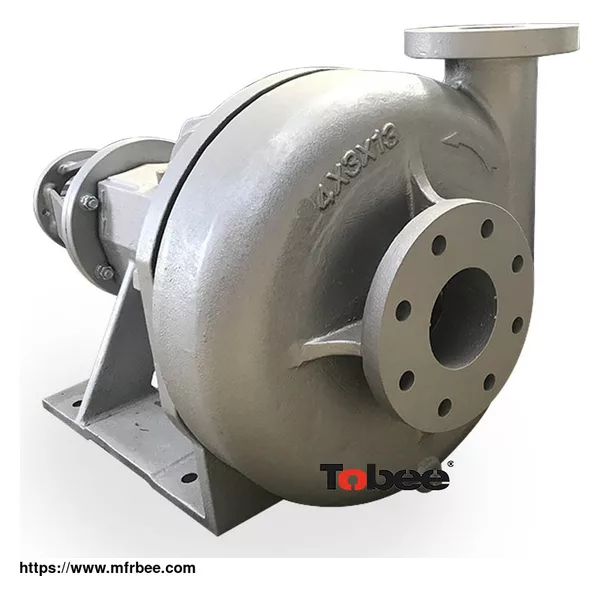

centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is
usually used as clean water pump.
Mission Sandmaster Pump
Pump Size A B C D U Key size E G H J K L M Approximate mass (kg) mm mm mm mm mm mm mm mm mm mm mm mm mm metal rubber 4/3 CAH 848 406 311 254 42 12X8 121 292 149 262 20 - 192 300 230 4/3 DAH 948 492 364 330 65 18X11 152 292 149 262 100 - 192 380 280 Tobee® 4/3 C AH Slurry Pumps ...
Description Sandman™ Mission Magnum XP 14x12x22 centrifugal frac pump • 27% High Chrome Pump Parts • Mechanical Seal Arrangement • Semi type and Open type impeller design Mission Magnum XP Blender Pumps XP Centrifugal Pumps Main Parts • Heavy Duty Pedestal – heavy ...
Description MISSION 2500 Supreme Tobee® The Mission 2500 Supreme has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 ...
Tobee® Mission Magnum I Pumps are proven as reliable, heavy-duty, low-cost slurry pumps. The 3×2×13 through 8×6×14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements. The Mission MAGNUM I has been engineered for the ...
SPECIFICATIONS: • Sizes from 3x2x13 to 10x8x14 • Flow rates from a few gallons per minute up to 2,600 GPM • Head pressure up to 550 feet • Best utilized for applications requiring up to 200 HP Design Features: • Up to 50% more capacity from the 8 x 6 pump • Optimum ...
Tobee® Mission 2500 Supreme Centrifugal Pump has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 Supreme is available in ...
Mission centrifugal Sandmaster pumps to suit for all kinds of drilling sand pump application. Bare shaft pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz. The model 10x8x14 and 8x6x14 centrifugal ...
