Mini Peristaltic Pump

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

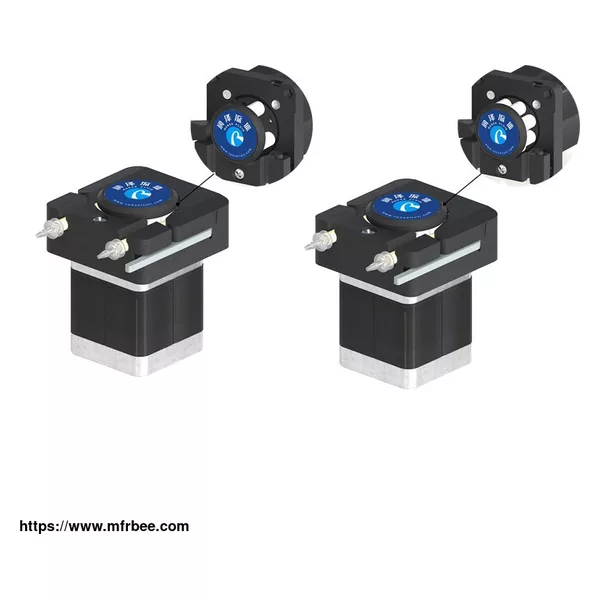

Small oem peristaltic pumps BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.

Specification of Mini Peristaltic Pump

Model No. BJ-RZ1030-4 BJ-RZ1030B

Pump Roller POM 4 rollers (low pulse) POM 4 / 8 rollers (low pulse)

Pump Head Material ABS engineering plastic PPS

Motor type NMB 1.8° 42 stepper motor NMB 1.8° 42 stepper motor

Input voltage 24V DC 24V DC

Rated Current 1.1A 1.1A

Max Power 9.2W 9.2W

Motor Speed 0-400rpm 0-400rpm

Flow Range 12.5-170ml/min 9-183ml/min

Tubing Size ID0.64-3.0mm WT0.8-1.0mm OD≤5mm ID0.64-3.0mm WT0.8-1.0mm OD≤5mm

Tubing Life Silicone≥200H BPT Rubber≥1000H Viton≥1000H Silicone≥200H BPT Rubber≥1000H Viton≥1000H

Pressure Rating Up to 2 bar（30psi） Up to 2 bar（30psi）

Working Environment 0-40℃, ≤80％ non-condensing 0-40℃, ≤80％ non-condensing

Max DB 70db 70db

Suction About 5 meters About 5 meters

Dimension (L*W*H) 57*57*63.5mm 57*57*72.4mm

Net Weight 424g 432g

Peristaltic Tubing for Mini Peristaltic Pump

Material Features Service Life

Silicone Food grade, High flexibility Temp. range -4℃ - +180℃ For non-corrosive liquid ≥200h

Pharmed BPT Saint-Gobain, FDA standard Temp. range -51℃- +132℃ Anti weak acid and alkali ≥1000h

Viton MasterFlex, FDA Standard Temp. range -20℃- +260℃ Anti strong acid and alkali ≥1000h

1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks

2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing

3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer

Flow Rate for Reference of Small Peristaltic Pump

Model Tubing BPT Rubber Tube Silicone Tube

RZ-1030-4 ID(mm) 0.8mm 1.0mm

WT(mm) 0.64 0.76 0.89 1.02 1.14 1.3 1.42 1.52 1.65 1.85 2.06 2.29 2.54 2.79 1.0 2.0 3.0

Max flow rate (ml/min) 12.5 17.3 22 28.2 33.4 42.5 51.9 59.4 72.2 89 101.9 112.6 137.6 146.9 26.1 105 170

RZ-1030B ID(mm) 0.8mm 1.0mm

WT(mm) 0.64 0.76 0.89 1.02 1.14 1.3 1.42 1.52 1.65 1.85 2.06 2.29 2.54 2.79 1.0 2.0 3.0

4 rollers Max flow rate (ml/min) 12 15 18 25 32 38 47 50 56 70 87 94 113 128 24 74 183

8 rollers 9 14 14 21 27 32 38 42 43 55 61 71 77 81 17 57 114

Note: Test under room temperatu re 20℃ and no external pressure (water), Flow rate may vary from diﬀerent media, condition, pressure, humidity, temperature etc. The data for reference only.

There are many mini peristaltic pump suppliers, but we are one of the best choices for you.

For more information about fluid control equipment, please feel free to contact us!
