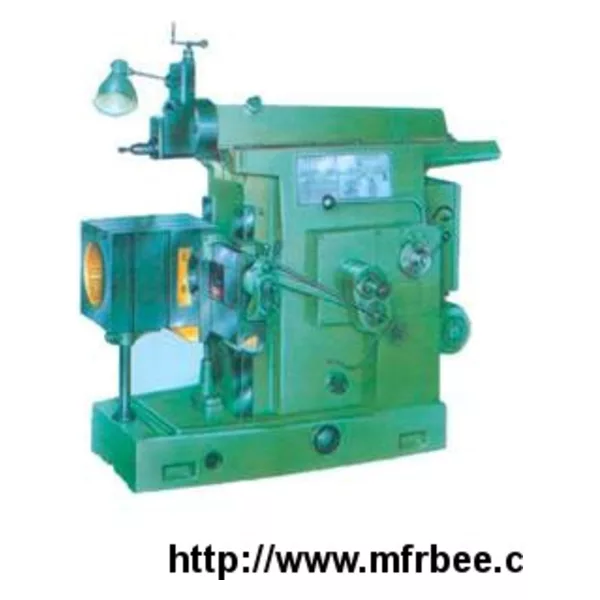

Shaping Machine B6035
Product sourcing details
Supplier: Shaoxing Maq Import & Export Co.,Ltd
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
Max.shaping length 350 mm
Max.distrance from lower edge of table 330 mm
Max.travel of table Horizontal 400 mm
Vertical 270 mm
Max. length between cutter and front bed end 500 mm
Max. ram travel 170 mm
Max.swivel angle of table Without vice ±90°
With vice ±55°
Max.vertical travel of tool head 110 mm
Frequency of ram strokes 32,50,80,125 times/min
Table feed per ram stroke
Pawl riding over 1 ratchet tooth Vertical 0.18 mm
Horizontal 0.21 mm
Pawl riding over 4 ratchet teeth Vertical 0.73 mm
Horizontal 0.84 mm
Moter 1.5kW.1400 r/min
Vice measurements
（Width×Depth×Max.opening） 180×55×150 mm
Overall dimensions（L×W×H） 1390×860×1455mm
Packing Size（L×W×H） Export 1530×930×1370 mm
Import 1580×980×1380 mm
Net weight 1000 kg
Gross weight 1200 kg
http://www.shaoxingmachine.com
Max.distrance from lower edge of table 330 mm
Max.travel of table Horizontal 400 mm
Vertical 270 mm
Max. length between cutter and front bed end 500 mm
Max. ram travel 170 mm
Max.swivel angle of table Without vice ±90°
With vice ±55°
Max.vertical travel of tool head 110 mm
Frequency of ram strokes 32,50,80,125 times/min
Table feed per ram stroke
Pawl riding over 1 ratchet tooth Vertical 0.18 mm
Horizontal 0.21 mm
Pawl riding over 4 ratchet teeth Vertical 0.73 mm
Horizontal 0.84 mm
Moter 1.5kW.1400 r/min
Vice measurements
（Width×Depth×Max.opening） 180×55×150 mm
Overall dimensions（L×W×H） 1390×860×1455mm
Packing Size（L×W×H） Export 1530×930×1370 mm
Import 1580×980×1380 mm
Net weight 1000 kg
Gross weight 1200 kg
http://www.shaoxingmachine.com
