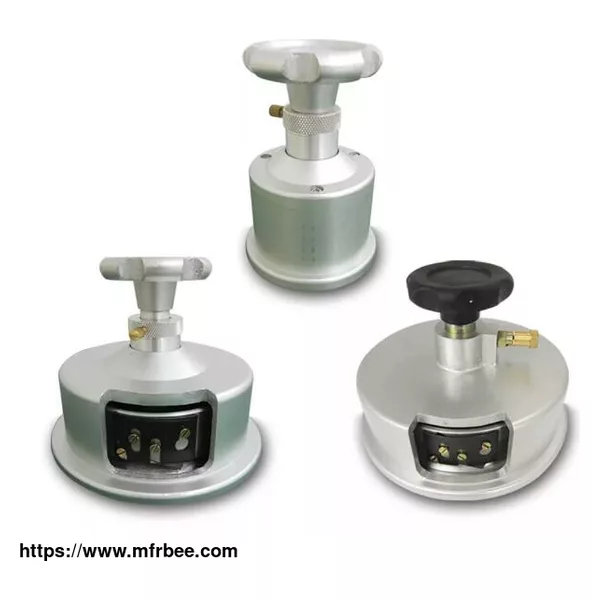

Circular Sample Cutter TF513A/C/D

FOB Price: USD $100.00 / Piece
Place Of Origin: China (Mainland)

Minimum Order: 1

Packaging: Wooden case packaging

Delivery: 15 Days

Circular Sample Cutter TF513A/C/D

A circular Sample Cutter or circular sampler, a fabric sample cutting machine, is a kind of equipment used to cut all kinds of wool, cotton, chemical fiber, knitting, and other fabric round samples. This GSM Cutter cuts fabric samples in various dimensions, such as 100cm2 for the Martindale test. The cutting pad is made of porous rubber, which allows GSM Round Cutter to cut into the base with complete safety. We are professional GSM cutter manufacturers. Our fabric gsm cutter price is reasonable.

Application

Fabric Circular Sample Cutter / Gsm Cutter, Fabric Swatch Cutter has a wide range of applications, suitable for textile, paper, packaging, testing, and scientific research industries, this instrument is suitable for cutting a variety of wool, cotton, chemical fiber, knitting, and other fabric round samples. The circular sample cutter cuts fabric samples in various, such as 100cm2 for the Martindale test. Cut accurate fabric circular samples with smooth edges by drawing action even difficult materials such as fabric, thin films, tissue paper, corrugated cardboard, and synthetic leather can be cut by the sample cutter conveniently.

As a fabric gsm checking machine, The cutting pad is made of porous rubber, which allows the sample cutter to cut into the base with complete safety.TESTEX provides a good quality fabric swatch-cutting machine for you.

How to cut the samples by using a Circular Sample Cutter?

The fabric to be cut flat on the rubber mat, the disc sampler on the fabric, pull out the locking device on the sampler, rotate about 90 degrees, hold the outer cover with one hand, hold the corrugated hand wheel with the other hand, and apply some pressure, then rotate the corrugated hand wheel clockwise (the angle of rotation is greater than 90 degrees), you can cut the round sample. Samplers use that locking device and rotate to the original position so that the blade can not be exposed to avoid injury to hands and other items.

Cautions of using a Circular Sample Cutter

1. the blade of this instrument blade is quite sharp, must need to complete the operation on the rubber pad.

2. cutting objects can not have metal objects, to prevent the blade from breaking.

3. The blade is a finely ground sampling blade, when replacing the blade need to pay attention to the position of the blade, the blade is easy to break, and the blade on the cutting material is thinner.
