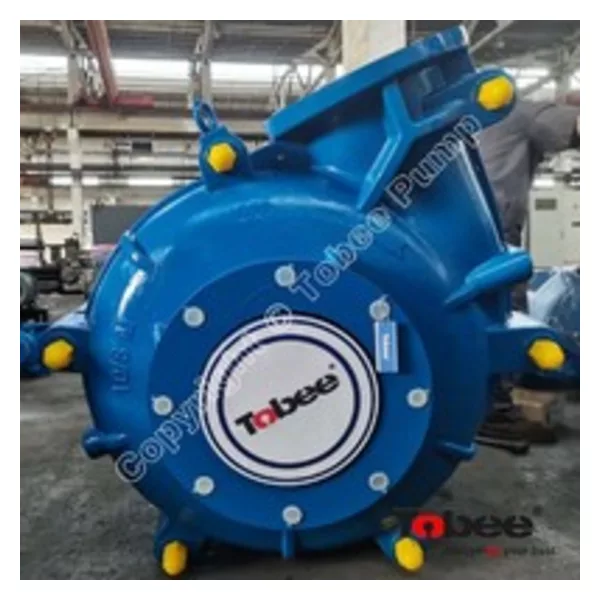

10x8ST-AH 离心渣浆泵 是最全面的离心渣浆泵系列,适用于采矿、化工、矿物加工和一般工业应用。卧式渣浆泵设计用于重型应用,如磨机排放、电力部门和尾矿,以及用于连续泵送高磨蚀性、高密度泥浆的特殊应用。
设计特点:
接液部件:
叶轮 - 各种冶金和弹性体选项(金属和弹性体可互换) - 前后泵出叶片(在封闭式叶轮上)减少泵内的再循环,并有助于防止密封污染 - 直或半 Francis 叶片的可选铸件(某些尺寸有 3 到 8 个叶片)提供单一尺寸的更广泛的液压选项
衬里 - 多种金属和弹性体选项(金属和弹性体衬里可互换)可供选择,以提供尽可能长的磨损寿命
密封安排:
推进器(离心密封)——适用时不需要外部密封水
填料函 - 带编织填料和套环的冲洗压盖密封
机械密封
轴承总成
筒式轴承箱允许在受控环境下从泵上拆卸和组装
超大轴径和减少的湿端悬伸有助于现场的长寿命和可靠性
东兵卫® 10/8 ST AH 渣浆泵性能参数:
模型 |
最大限度。力量
(千瓦) |
材料 | 清水性能 |
叶轮
叶片号 |
|||||
衬垫 | 叶轮 |
容量Q
(立方米/小时) |
头高
(米) |
速度n
(每分钟转数) |
有效。η
(%) |
汽蚀余量
(米) |
|||
10/8ST-AH | 560 | 米 | 米 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 5个 |
东兵卫®10/8 ST AH 渣浆泵应用:
• 湿式破碎机
• 半自磨机排放
• 球磨机排放
• 棒磨机卸料
• 矿物加工
• 选煤
• 旋风进料
• 聚合处理
• 粗磨细磨
• 化学浆料服务
• 尾矿
• 二次研磨
• 工业加工
• 纸浆和纸张
• 食品加工
• 破解操作
• 灰处理
