Woven Wire Mesh Fence
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Wire Mesh Fencing - Woven Wire Field Fence Galvanised for Highway Safety
| Road Furniture |
| Guardrail |
| Guardrail (Road Side) - Gr - 4.0 |
| Guardrail (Road Side) - Gr - 2.0 |
| Emergency Median Opening (Chain Links) |
| Fence |
| Right-of-Way Fence |
| Traffic Signs |
| Traffic Sign Board - Regular Size - Round 600mm |
| Traffic Sign Board - Regular Size - Square 600mm |
| Traffic Sign Board - Regular Size - Round 900mm |
| Traffic Sign Board - Regular Size - Square 900mm |
| Traffic Sign Board - Rectangular Variable Dimension |
| Road Markings |
| Road Markings with Reflectorized Thermoplastic Paint |
| Road Markings hot or cold applied for temporary marking |
| Roadside Markers |
| Kilometer Post (on Embankment) |
| Kilometer Post (on Bridge) |
| Culvert and Bridge Marker |
| Delineators |
| Delineator - Type 1-1 (Crystal) |
| Delineator - Type I-2 (Orange) |
| Delineator - Type 11-1 (Crystal) |
| Delineator - Type il-2 (Orange) |
| Delineator - Type III (Orange Double) |
| Delineator - Type IV (Orange Triple Vertical) |
| Delineator - Type V (Orange Triple Horizontal) |
| Delineator - Type VI-1 (Crystal, for Bridge) |
| Delineator - Type VI-2 (Orange, for Bridge) |
| Delineator - Type VI-3 (Orange Both Side for Bridge Median) |
| Delineator - Type VII (Orange Double, for Bridge) |

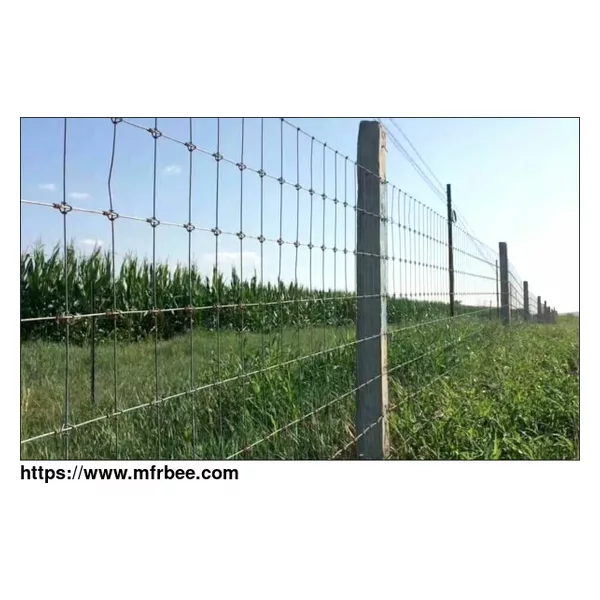

We supply woven wire mesh fences galvanized finishes used for construction of road side fencing barrier for highways. The woven wire field fence for highway fencing is hot dipped galvanised according to AASHTO M 279, (ASTM A 116) coating class 1 standard. The unique woven wire with graduated mesh spacing can effectively prevent deer, sheep and other animals from entering highway roads and ensure a safety traffic.
Wire Fencing Panels for Highway Secure and Safety
Highway Fence - Way Fence
Height: 1410mm
Panel: Woven wire fabric
Normal spacing between line post: 4500mm
Wire fence combined with post
End post with brace
Woven Wire Mesh
Woven wire used for wire fence is galvanised and conforming to AASHTO M 279, (ASTM A 116) coating class 1
Style: Woven wire field fence, 1155-12-9 design.
All fence wire ties, clips, clamps, staples and other wire to be galvanised in accordance with AASHTO M232.
Corner posts with braces
Typical concreter footing for braces
Typical concrete footing for all end post, corner post and line brace post
Angle post can be used as end post, corner post and line brace post
Holes in posts, braces and cup shall accomodate 1/2-13 UNC Galvanised Machine Bolts
Pipe length: 1980mm Min.
Galvanized pipe, inside diameter 63, outside diameter 73.0, 8.63kg/m, pipe wall thickness 5.16
Cold rolled pipe, inside diameter 63, outside diameter 73.0, pipe wall thickness 4.06
Pipe length: 1980mm Min.
Braces
Type 35mm O.D. tubular steel wire brace band, hinge bolt and rail end, all galvanised
Weight: 24 kg/m 5% more or less
Length: 1980 mm min.
Fencing Posts for Line, Corner, Gates
Metal posts
Quality conforming to AASHTO M281.
Holes in end.
For fence line, corner and gate posts.
Brace posts
Type -64x64x64 structural steel angles
Weight. 6.10 kg/m
Length-1980 mm
No of braces 2
Line posts: secured with anchor
Type - "studded tee" or "U"
Weight-1.98 kg/m(without anchor)
Length - 1820 mm min.
Anchor - securely fastened, with bearing surface sufficient to resist movement of post: weight - 0.30 kg
Metal end posts and gate posts:
Type - 64 x 64 x 6.4 structural steel angles
Weight. 6.10 kg/m
Length for end post 1980 mm min.
Panel gate 2120 mm min.
No.of braces-1
Braces (for corner, end or line brace posts)
Type - 51 x 51 x 6.4 structural steel angles
Weight - 475 kg/m
Length - same as corner and end posts used
Fence Post Footings / bases:
With crowned tops
Security Fencing Gates
Walk gates:
Height 1510mm
Weight for Walk gates galvanized steel. 7.3 kg; tempered aluminum gate 4.5 kg
Width of gate opening: 910mm min.
Alternative walk gates:
Height 1070mm
Weight min. 8.2kg with latch and hinges
Width of gate opening - 910 min.
Gate frame - nps-3/4 standard galvanized pipe
All-welded construction.
Driveway gates:
Fabric: Woven wire field fence
Latches and hinges:
Galvanised steel or aluminium
Electro-galvanized chain optional.
Eyebolt and snap hook type latch.
Eyebolt chain and snap hook assembly to be secured to latch side of gate.
Fence Layout, Bracing and Installation
Fence intersection with bracing
