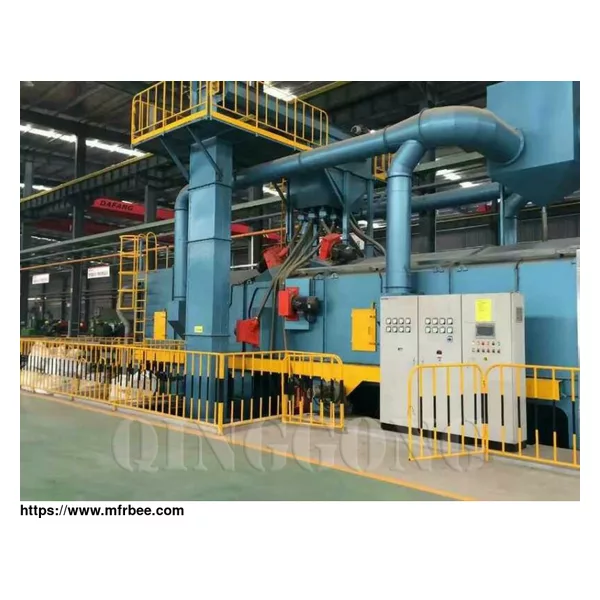

STEEL STRUCTURE SHOT BLASTING MACHINE

FOB Price: USD $50,000.00 / Piece
Place Of Origin: China

Minimum Order: 100

Packaging: 200 sets/month

Delivery: 15 Days

Steel shot blasting machine is the most environment-friendly option for corrosion removal and surface preparation on a steel structure. industrial shot blasting equipment is used in almost every industry that uses metal, including aerospace, automotive, construction, foundry, shipbuilding, rail, and many others. Good quality steel industrial shot blaster for sale!

Type unit QGX600 QGX1200 QGX1200 QGX1500 QGX1800 QGX2000

Effective blasting width mm 600 1200 1200 1500 1800 2000

Dimension of entrance(W×H) mm 800×1400 1400×1600 1400×2000 1700×1600 2000×1700 2200×2400

Work speed to achieve a cleaning of Sa2.5 ISO8501 m/min 0.5~3 0.5~3 0.5~3 0.5~3 0.5~3 0.5~2

Number of wheels×power kW 8×7.5/11 8×11/15 8×11/15 8×11/15/18.5 8×11/15 12×11/15/18.5

Wheel optional kW — — 10×11/15 10×11/15/18.5 10×11/15/18.5 14×11/15/18.5

Abrasive initial filling capacity kg 4000 4000 4000 4500 8000 11000

Processed length of work piece mm 1200~12000 1200~6000 1200~12000 3000~12000 2400~12000 2400~18000

Foundation pit required Yes Yes/No Yes/No Yes Yes Yes

Technical support:

1. The engineering team uses 3-D dynamic simulation design blast turbines layout to ensure that the steel shot ray can cover the surface of the steel structure 360 degrees.

2. The equipment adopts pneumatic control abrasive distribution system, which eliminates the blast wheel idling and injuring workers.

3. The machine adopt environment-friendly high-efficiency cartridge filter, dust collecting efficiency reach to 99.9%

4. The machine with limit switch on access door, that protect people, in any case, they open the door, the blast turbines will stop according.

5. Six layers protection curtain for protection the shot balls spatter out during blasting.

6. The machine with the sand-guide channel at the outlet of the equipment, and the steel shot on the steel structure can be poured out in the sand-guide channel, and then enter the recovery system.

7.The steel structure shot blasting machine uses high effective abrasive recovery system. A longitudinal screw conveyor to reclaim the used blasting media and contaminants into the crosswise screw conveyor, then into the bucket elevator and abrasive residue separator, and then the cleaned abrasive get into the storage hopper to recycle, the residual will get out of the recycling system from the air wash cleaner system.

Blast wheel:

On the base of the overseas advanced technology, QINGGONG MACHINERY independently developed KT series blast wheel.

1. The blast turbine is the heart of the steel shot blasting machine and has a direct influence on the work efficiency, the effect of the blasted surface and the production costs.

2. KT series blast wheel can improve efficiency by up to 30%. KT blast turbines reduce the consumption of medium, cut down energy consumption, then it can improve efficiency.

1.Improve the lifetime of “Hot Parts”. The material of blades, control cage, abrasive distributor and other spare parts are high chrome wear-resistant cast iron.

As one of shot blasting companies, we can offer sorts of Shot Blasting Machine for sale, if you are interested, please leave us a message.

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa,Americas,Emerging Markets
Founded Year:1975
Address:No 377, Langyatai S Rd, Huangdao District, Qingdao City, China
Contact:QGMA .com
