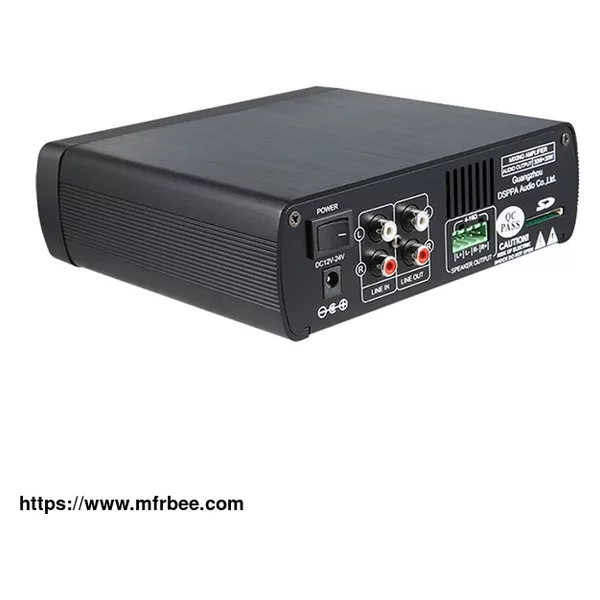

Mini60 2x30W Mini Digital Amplifier with USB & Bluetooth

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Features

● Built-in 2x30W stereo Class D amplifier

● Support wireless Bluetooth 3.0 and USB/SD input

● 1 AUX and 1MIC input , 1 AUX output for power extension

● Support REC and digital volume control

● With remote controller for convenient use

● With power adapter support 12-24V DC power

● Aluminum-alloy casing, small volume & portable, firm & durable

Introduction

DAPPA mini 60 is a digital mixer china amplifier, also known as public address mixer, and a small acoustic amplification system featured by simplicity and high cost performance. This class d mixer amplifier can apply to the small-sized broadcast system, the background music in the small-sized supermarket, and public address in the classroom. The digital mixer system consists of the latest high-performance ARM core master control and high-efficiency energy-saving digital power amplifier circuit. This product's name for short can be called mini digital amp or digital mixer amplifier.

Specification

Item Indicator Remark

AUX input sensitivity (Input/Sensitivity) -6dBV OUT 30W×2

DC 20V

MIC input sensitivity (Input/Sensitivity) -45dBV

Power output (Power Output) 2×30W

Static power consumption (Power) 0.24W

Maximum power consumption (Max Power) 90W

Degree of distortion (Harmonic Distortion) 1% 4Ω/10W×2

Signal to noise ratio (S/N Ratio) MIC: 73dB AUX: 55dB

Range of power supply (Power Supply) DC 12V~24V

Frequency response (Frequency Response) MIC: 100Hz~16kHZ

AUX: 20Hz~22kHz ±3dB

Unit size (L×W×H mm) 180×145×60

Net Weight 0.8Kg Without power adapter

Packing size (L×W×H mm) 287x223x108

Gross Weight 1.0Kg

As one of sound system manufacturers, we will do our best to meet all the needs of customers.
