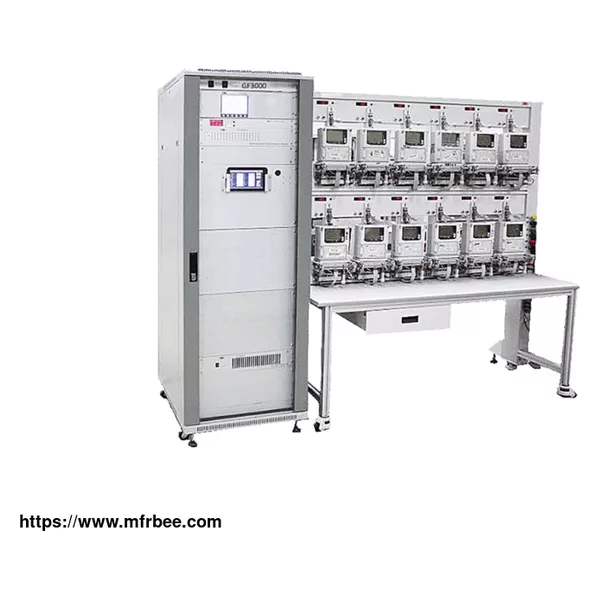

GF3000 MULTI-POSITIONS THREE PHASE ENERGY METER TEST BENCH
Product Quick Detail
- FOB Price
- USD $118,655.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 1 set each Wooden box
- Delivery
- 7 Days
Specifications
FEATURES
- With Multi-channel server;
- Operate automatically or manually;
- 3×120A, 3×380V, accuracy 0.02% or 0.05%;
- With auto PC control verification software;
- High resolution of voltage, current and power;
- Meeting standard ISO17025, IEC/EN 60736 and IR46;
- Every meter position have error calculation/monitor;
- 3, 6, 12, 20, 24, 40, 48pcs meter positions optional;
- Each meter position with error display in meter rack;
- Large LCD display and simple interface for operation;
- Wide current measuring range from 1mA to 120A which can be automatically switched;
- High stability of power source which is up to 0.01%/100s and low distortion which is no more than 0.3%;
- Self-check and perfect protection function of overload, short voltage circuit and open current circuit;
- High accuracy, 6-digit display the energy relative errors are no more than 0.05%(0. 1%)within the measuring range;
- Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P Links) (optional);
- Equipped with three phase multifunction reference meter and program-conrolled three phase power source which can be separately used and are convenient for testing;
FUNCTIONS
- Timing error test;
- Creeping and starting test;
- Equipped with RS232 communication port;
- Standard deviation, 24 hour variation test;
- Calibration and verification of pulse constant;
- Influencing quantity test of voltage, frequency, harmonic;
- Able to check the same type meters with different constants;
- Full automatic, semi automatic and manual operation available;
- Testing energy registers (dial test) and maximum demand indicator;
- Supporting bar code input, which increase the efficiency of input;
- Able to print out all kinds of test reports with the standard forms;
- Able to calibrate all kinds of electronic and inductive three phase kWh meter;
- Forward and reverse active energy / forward and reverse reactive energy error test;
- Able to perform automatic measurement like shunting, basic errors, standard deviation, and etc;
- Able to test voltage, current, active/reactive/apparent power, phase, power factor, frequency, and etc;
- Able to display waveform of voltage and current able to set 2nd-51st harmonic of voltage and current, measure the waveform distortion and harmonic content, and display harmonic chart;
PARAMETERS
| Electrical parameters | |
|---|---|
| Accuracy | 0.02%, 0.05%, 0.1% |
| Power Supply | AC 180-265V, or 3×220/380V±15%, frequency 50/60Hz. |
| AC Voltage Output | |
| Range(U1, U2, U3) | 57.7V, 100V, 220V, 380V (max 480V) |
| Adjustment range | (0-120)%RG(1) |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | 0.01%/120s |
| Distortion | 0.3% (Non-capacitive load) |
| Output load | 1500VA |
| Measuring accuracy | 0.02%RG or 0.05% RG |
| AC Current Output | |
| Range(I1,I2,I3) | 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A, 120A |
| Adjustment range | (0-120)%RG |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | <0.01%/120s |
| Distortion | ≤0.3% (Non-capacitive load) |
| Output load | 1500VA |
| Accuracy | 0.02%RG or 0.05% RG |
| Power Output | |
| Active power output stability | <0.01%RG/120s |
| Reactive power output stability | <0.02%RG/120s |
| Active power measuring accuracy | 0.02%RG or 0.05% RG |
| Reactive power measuring accuracy | 0.1%RG |
| Phase Output | |
| Output adjustment range | 0°-359.999° |
| Output adjustment fineness | 10, 1, 0.1, 0.01 as optional. |
| Resolution | 0.01° |
| Accuracy | 0.02° or 0.05° |
| Power Factor | |
| Adjustment range | -1 ~ 0 ~ 1 |
| Resolution | 0.0001 |
| Measurement accuracy | 0.0005 |
| Frequency Output | |
| Adjustment range | 40Hz-70Hz |
| Output adjustment fineness | 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional. |
| Resolution | 0.001Hz |
| Accuracy | 0.002Hz |
| Voltage /Current/Harmonic Setting | |
| Harmonic number | 2-51times |
| Harmonic content | 0-40% |
| Harmonic phase | 0-359.99 |
| Harmonic setting accuracy | (10%±0.1%)RD(2) |
| Power Energy Measurement Error | |
| Active power energy | 0.02%RG or 0.05% RG |
| Reactive power energy | 0.1%RG |
| Power Pulse Output | |
| Power pulse type | active pulse, reactive pulse |
| Active power pulse output | 5V, 10mA |
| Pulse output frequency | Max 50kHz |
| Power Pulse Input | |
| Pulse constant set range | (1--599999999)/kwh |
| Energy pulse type | support active and reactive pulse, the highest frequency power pulse input is 200KHz. |
| Meter Position | |
| Position | 3, 6, 12, 20, 24, 40, 48pcs meter |
| Standard | |
| Standard |
IEC 62053-21,22, 23; IEC 60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016; EN 50470-1, EN 50470-2, EN-50470-3; IEC 61010; |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement Category | 300 V CAT III, 600 V CAT II |
| Degree of protection | IP20 |
| Declaration of conformity | CE & CNAS certified |
| Mechanical parameters | |
| Dimensions (mm) |
Cabinet size: 800 * 600 * 1850mm (L * W * H). Bench size: 2400 * 760 * 1846mm (L * W * H). |
| Weight (kg) | About 235 |
| Environmental conditions | |
| Ambient temperature | 0°C to +40°C |
| Relative humidity | 35%-85% |
|
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
