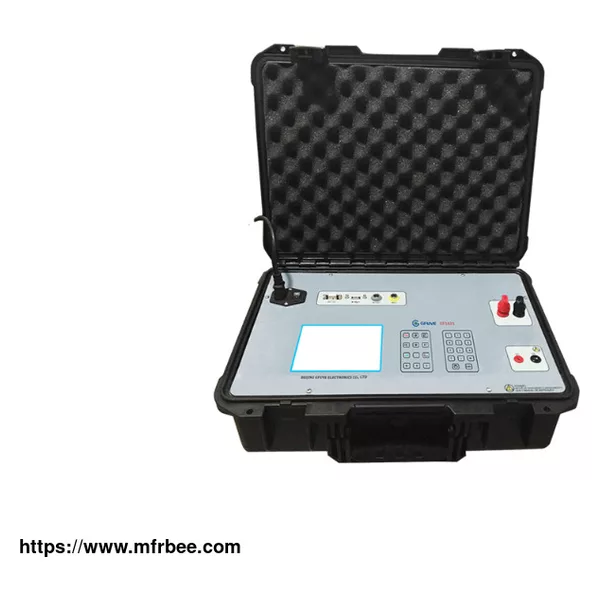

GF1021 SINGLE PHASE PORTABLE ELECTRIC METER TEST EQUIPMENT
Product Quick Detail
- FOB Price
- USD $11,655.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 1 set each Wooden box
- Delivery
- 7 Days
Specifications
FEATURES
- Vector display;
- Portable design;
- Weight light 8Kg;
- Accuracy class 0.05;
- 7 inch TFT touch screen;
- 0-120A, 0-500V, 40-70Hz;
- Test by automatic or manual;
- Test 2pcs meter synchronously;
- Start testing and creep testing;
- Recorder 1000 sets energy meter data;
- Programmable several testing scheme;
- Reference standard and power source integrated;
- Overload, short circuit, open circuit protection;
- Automatic operation using predefined load points;
FUNCTIONS
- Testing AC voltmeter & Ammeter;
- Measuring the distortion factor;
- Testing single phase power meter error;
- Vector representation of the measuring values;
- Measuring mechanical meter and electric meter;
- Testing power factor meter and frequency meter;
- Measuring frequency, phase shift and power factor;
- Testing energy meter error installations in 1P2W;
- As high precision AC voltage source and current source;
- Energy dosing with built-in current source and voltage source;
- Power and energy measurements for active, reactive and apparent power;
- Harmonic spectrum analysis for voltage and current up to the 51th order;
PARAMETERS
| Electrical parameters | |
|---|---|
| Accuracy class | 0.05%, 0.1% |
| Power Supply | One Phase AC 85-265V, frequency 50/60Hz. |
| AC Voltage Output | |
| Range | 0-500V; 0-380V; 0-300V; |
| Adjustment range | (0-120)%RG(1) |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | 0.01%/120s |
| Distortion | 0.1% (Non-capacitive load) |
| Output load | max 30VA |
| Measuring accuracy | 0.05%RG |
| AC Current Output | |
| Range | 0-6A; 0-12A; 0-20A; 0-60A; 0-120A; |
| Adjustment range | (0-120)%RG |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | <0.01%/120s |
| Distortion | ≤0.1% (Non-capacitive load) |
| Output load | max 50VA or 100VA |
| Accuracy | 0.05%RG |
| Power Output | |
| Active power output stability | <0.01%RG/120s |
| Reactive power output stability | <0.02%RG/120s |
| Active power measuring accuracy | 0.05%RG |
| Reactive power measuring accuracy | 0.1%RG |
| Phase Output | |
| Output adjustment range | 0°-359.999° |
| Output adjustment fineness | 10, 1, 0.1, 0.01 as optional. |
| Resolution | 0.01° |
| Accuracy | 0.02° |
| Power Factor | |
| Adjustment range | -1 ~ 0 ~ 1 |
| Resolution | 0.0001 |
| Measurement accuracy | 0. 0005 |
| Frequency Output | |
| Adjustment range | 40Hz-70Hz |
| Output adjustment fineness | 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional. |
| Resolution | 0.001Hz |
| Accuracy | 0.002Hz |
| Voltage /Current/Harmonic Setting | |
| Harmonic number | 2-51times |
| Harmonic content | 0-40% |
| Harmonic phase | 0-359.99 |
| Harmonic setting accuracy | (10%±0.1%)RD(2) |
| Power Energy Measurement Error | |
| Active power energy | 0.05%RG |
| Reactive power energy | 0.1%RG |
| Power Pulse Output | |
| Power pulse type | active pulse, reactive pulse |
| Active power pulse output | 5V, 10mA |
| Power Pulse Input | |
| Energy pulse type | support active and reactive pulse, the highest frequency power pulse input is 200K. |
| Communication Port | |
| Communication Port | RS232, USB2.0 |
| Standard | |
| Standard |
IEC 62053-21,22, 23; IEC 60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016 |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement Category | 300 V CAT III, 600 V CAT II |
| Degree of protection | IP65 |
| Declaration of conformity | CE & CNAS certified |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 325×275×135 |
| Weight (kg) | 8 |
| Environmental conditions | |
| Ambient temperature | -10°C to +50°C |
| Relative humidity | 35%-85% |
|
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
SELECTION GUIDE
| No. | Accuracy | Voltage range | Current range | Weight |
|---|---|---|---|---|
| 102112001 | 0.10% | 0-500V | 0-120A | 12KG |
| 1021120005 | 0.05% | 0-500V | 0-120A | 12KG |
| 10216001 | 0.10% | 0-380V | 0-60A | 10KG |
| 102160005 | 0.05% | 0-380V | 0-60A | 10KG |
| 10212001 | 0.10% | 0-300V | 0-20A | 8KG |
| 102120005 | 0.05% | 0-300V | 0-20A | 8KG |
| 10211201 | 0.10% | 0-300V | 0-12A | 6.5KG |
| 102112005 | 0.05% | 0-300V | 0-12A | 6.5KG |
| 1021601 | 0.1% | 0-300V | 0-6A | 5KG |
| 10216005 | 0.05% | 0-300V | 0-6A | 5KG |
