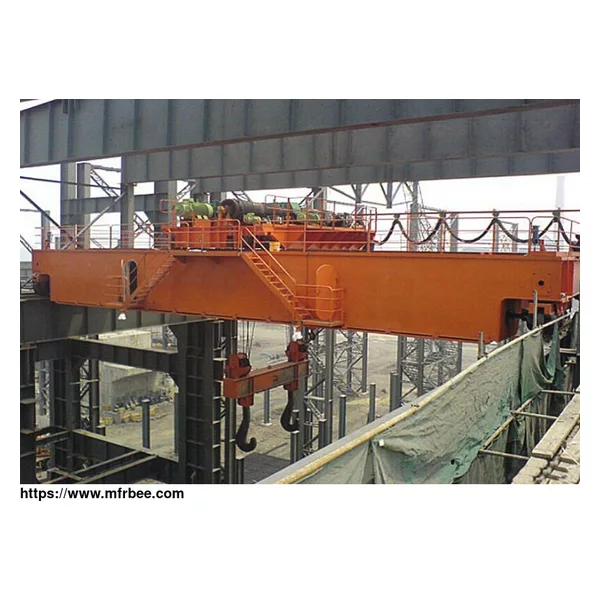

Foundry Overhead Crane

Foundry Overhead Crane is mainly composed of bridge, crab, connecting traverse, trolley mechanism and electric part. The main hook employs the constant-spacing connecting traverse as the load handling device to hoist steel ladle and the auxiliary hook acts in concert with the main hook to accomplish pouring of molten steel slag, and other auxiliary hoisting.

Advantages of Foundry Crane

For heavy work

Dedicated to steel plants

Start and stop running smoothly

Safe and reliable driving, long life

High quality and competitive price

Specification of Foundry Overhead Crane

tem QDY YZ

Loading capacity 5 ~ 75t 75 ~ 350t

Lifting height customized

Lifting speed Varies with a lifting capacity

Span 10.5 ~ 31.5 m 15 ~ 38 m

Lifting mechanism Winch trolley

Working-class A7/A8

Working temperature -20 ~ +60 ºC

Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz

Control voltage DC-36 / 48V

Motor protection class IP54 IP55 IP65

Control way Cabin, wireless remote, pendant push button

Applications Of Foundry Overhead Crane

It is usually used for lifting and pouring metal, and it is specially used for transporting hot solid metal in foundries, steel plants and other places.

If you have needs to buy an explosion proof overhead crane, please leave us a message.
