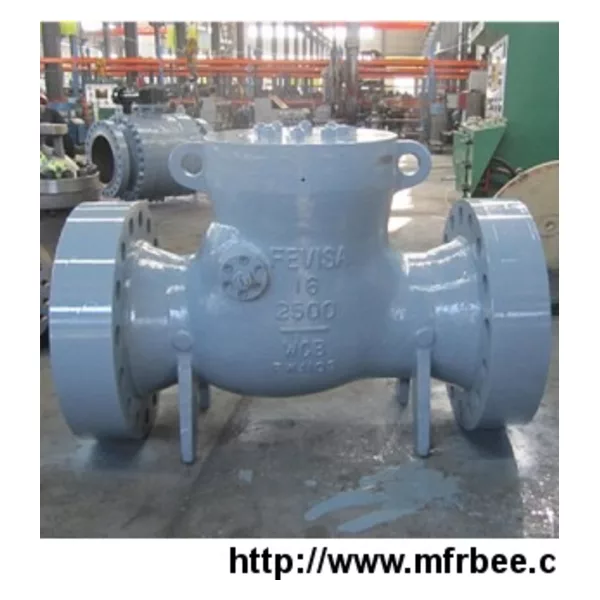

Cast Steel Swing Check Valve, 16 Inch, 2500LB
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
China Cast Steel Swing Check Valve: Swing Type Disc Check Valves, 16 Inch, 2500LB, Bolted, Pressure Seal Cover, WC6, WC9, C5 Cast Steel, Flanged End.
Bolted Bonnet/Pressure Seal Bonnet.
Swing Type Disc.
4" & Larger With Eye Bolt.
By Pass On Request.
Specifications:
Design: ASME B16.34/BS 1868.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598.
Special: NACE MR-01-75.
Pressure: 2500LB.
Size Range: 16".
Material Available: WCB, WCC, LCB, LCC, WC6, WC9, C5.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Europe,Americas,G20,Middle East,Oceania,Asia
- Founded Year:1993
- Address:
- Contact:Jeawin Zhang
