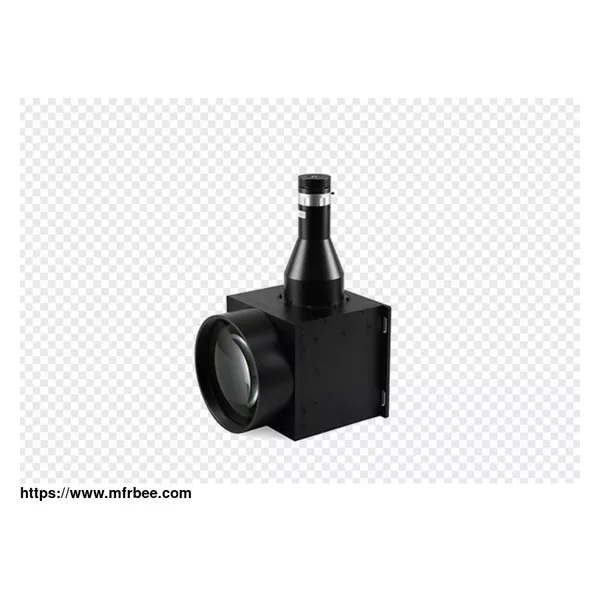

Machine Vision Telecentric Illuminator

Packaging: N/A

Delivery: N/A

Telecentric illuminator is of great significance to the image processing system. Providing stable and reproducible illumination conditions, the telecentric light illuminator produced by Canrill can help the image processing tools, such as our machine vision telecentric illumination lens, to better capture the visual image of the object.

Better clarity and WBC, higher telecentricity

Especially suitable for round workpiece measurement

Machine Vision Telecentric Illuminator Specification

Model Focal Distance (MM) Rated Power (W) Rated Voltage (V) Max Current (MA) Output Light Diameter Φ (MM) WD (MM) WD Tolerance (±mm) Suggested Qualified Collimation (°)

Telecentric Illuminator XF-PTI020-(C) 100 3W 3V 1000mA 20 110 50 0.52

Telecentric Illuminator Machine XF-PTI037-(C) 79.3 5W 24V 208mA 37 56 40 1.73

Machine Vision Illuminator XF-PTI060-(C) 131.4 5W 24V 208mA 60 90 66 1.05

Illumination Techniques in Machine Vision XF-PTI080-(C) 160.3 5W 24V 208mA 80 120 80 0.86

Telecentric Illuminator XF-PTI080-L90-(C) 160.3 5W 24V 208mA 80 120 80 0.86

Telecentric Illuminator XF-PTI100-L90-(C) 220.7 5W 24V 208mA 100 165 110 0.62

Telecentric Illuminator Machine XF-PTI152-L90-(C) 418.992 5W 24V 208mA 152 419 209 0.33

Machine Vision Illuminator XF-PTI195-L90-(C) 508.382 5W 24V 208mA 195 508 254 0.27

Machine Vision Illuminator XF-PTI238-L90-(C) 753.723 5W 24V 208mA 238 751 377 0.18

Established in 2009, as an optical lens manufacturer, Canrill Optics is the first one to focus on the design, manufacturing & marketing of telecentric industrial camera lens in China, and the only one with a complete supply chain from optical parts to mechanical parts in industry lens all over the world.
